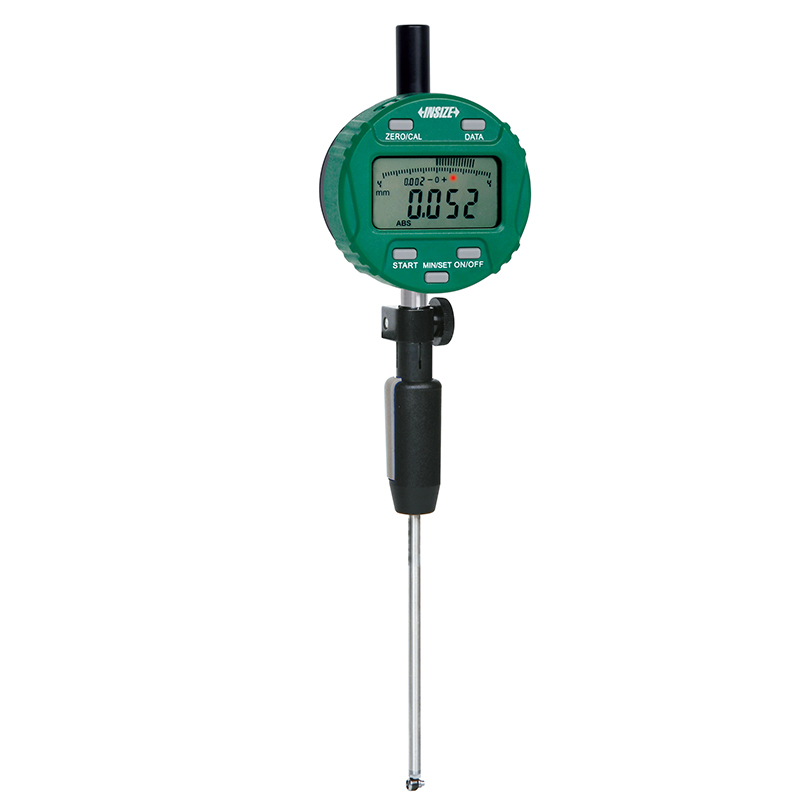

Bore Gauges For Small Holes
Code: 2425
Applicable for 0.01mm or 0.001mm, graduation dial indicators
Carbide contact point and anvil
Optional accessory: dial indicator or dial comparator, setting ring (code 6312)
Specification
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| 2425-6 | 4.5-6mm | 2μm | 0.5μm |
| 2425-8 | 6-8mm | 2μm | 0.5μm |
| 2425-12 | 8-12mm | 2μm | 0.5μm |
| 2425-20 | 12-20mm | 2μm | 0.5μm |
