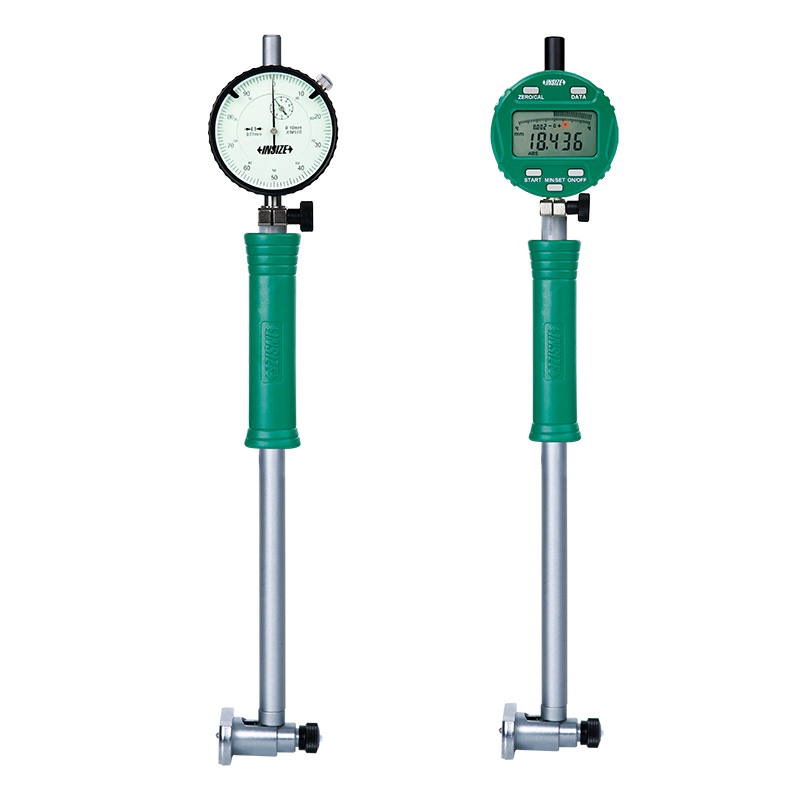

Bore Gauges(With Centering Plate)
Code: 2530/2130
Optional accessory: setting ring (code 6312), long handle (code 7351), bore gauge setter
Specification
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| 2530-100 | 50-100mm | ±0.018mm | 0.003mm |
| 2530-160 | 50-160mm | ±0.018mm | 0.003mm |
| 2530-161 | 100-160mm | ±0.018mm | 0.003mm |
| 2130-100 | 50-100mm | ±0.018mm | 0.003mm |
| 2130-160 | 50-160mm | ±0.018mm | 0.003mm |
| 2130-161 | 100-160mm | ±0.018mm | 0.003mm |
| 2130-100WP | 50-100mm | ±0.018mm | 0.003mm |
| 2130-160WP | 50-160mm | ±0.018mm | 0.003mm |
| 2130-161WP | 100-160mm | ±0.018mm | 0.003mm |
