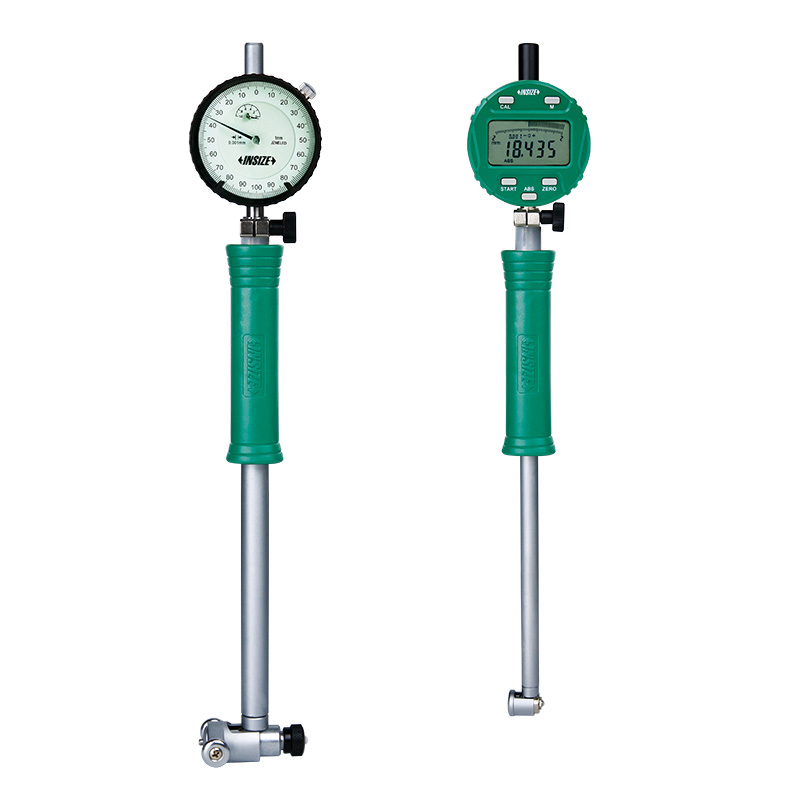

Precision Bore Gauges (With Dial Indicator)
Code: 2825/2126
Optional accessory: setting ring (code 6312), bore gauge setter
Specification
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| 2825-35 | 18-35mm | ±0.007mm | 0.0015mm |
| 2825-60 | 35-60mm | ±0.007mm | 0.0015mm |
| 2825-100 | 50-100mm | ±0.007mm | 0.0015mm |
| 2825-160 | 50-160mm | ±0.007mm | 0.0015mm |
| 2825-161 | 100-160mm | ±0.007mm | 0.0015mm |
| 2825-250 | 160-250mm | ±0.007mm | 0.0015mm |
| 2825-450 | 250-450mm | ±0.007mm | 0.0015mm |
| 2126-35 | 18-35mm | ±0.007mm | 0.002mm |
| 2126-60 | 35-60mm | ±0.007mm | 0.002mm |
| 2126-100 | 50-100mm | ±0.007mm | 0.002mm |
| 2126-160 | 50-160mm | ±0.007mm | 0.002mm |
| 2126-161 | 100-160mm | ±0.007mm | 0.002mm |
| 2126-250 | 160-250mm | ±0.007mm | 0.002mm |
| 2126-450 | 250-450mm | ±0.007mm | 0.002mm |
| 2126-35WP | 18-35mm | ±0.007mm | 0.002mm |
| 2126-60WP | 35-60mm | ±0.007mm | 0.002mm |
| 2126-100WP | 50-100mm | ±0.007mm | 0.002mm |
| 2126-160WP | 50-160mm | ±0.007mm | 0.002mm |
| 2126-161WP | 100-160mm | ±0.007mm | 0.002mm |
| 2126-250WP | 160-250mm | ±0.007mm | 0.002mm |
| 2126-450WP | 250-450mm | ±0.007mm | 0.002mm |
