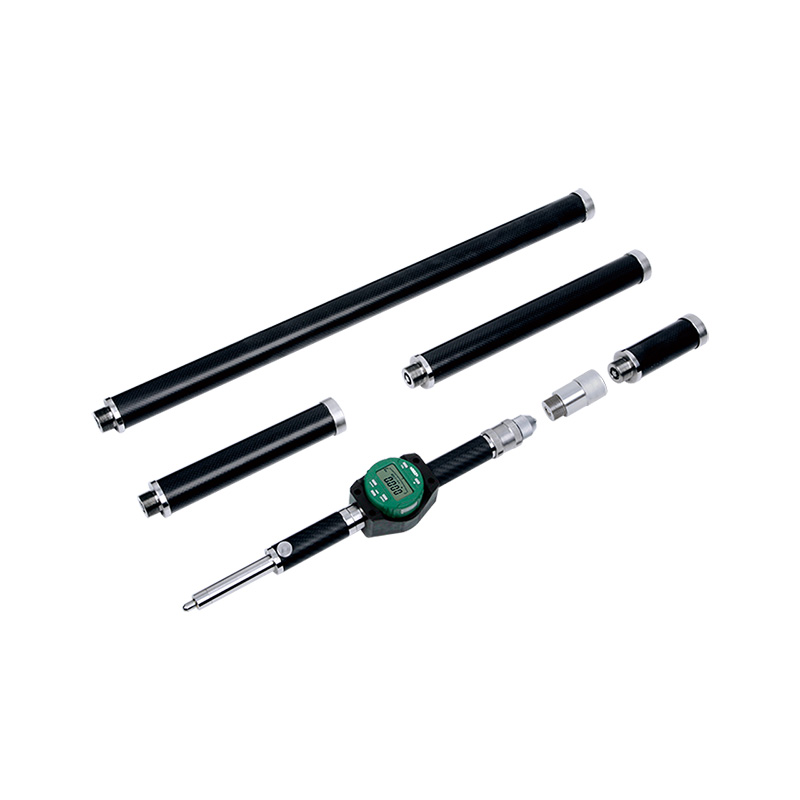

Carbon Fiber Bore Gauges
Code: 3522
Carbon fiber extension rods, light weight, not easy to deform, low thermal expansion
Carbide measuring faces
Data output
Button function: on/off, zero, tolerance Go and No-Go display, data preset, measuring direction change, max./min./TIR measurement, inch/metric conversion, absolute/incremental measurement
Supplied with 400mm setting standard
Specification
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| 3522-1000 | 400-1000mm | ±6µm | ±3µm |
| 3522-1500 | 400-1500mm | ±6µm | ±3µm |
| 3522-2000 | 400-2000mm | ±6µm | ±3µm |
| 3522-2400 | 400-2400mm | ±6µm | ±3µm |
| 3522-3400 | 400-3400mm | ±6µm | ±3µm |
| 3522-6400 | 400-6400mm | ±6µm | ±3µm |
