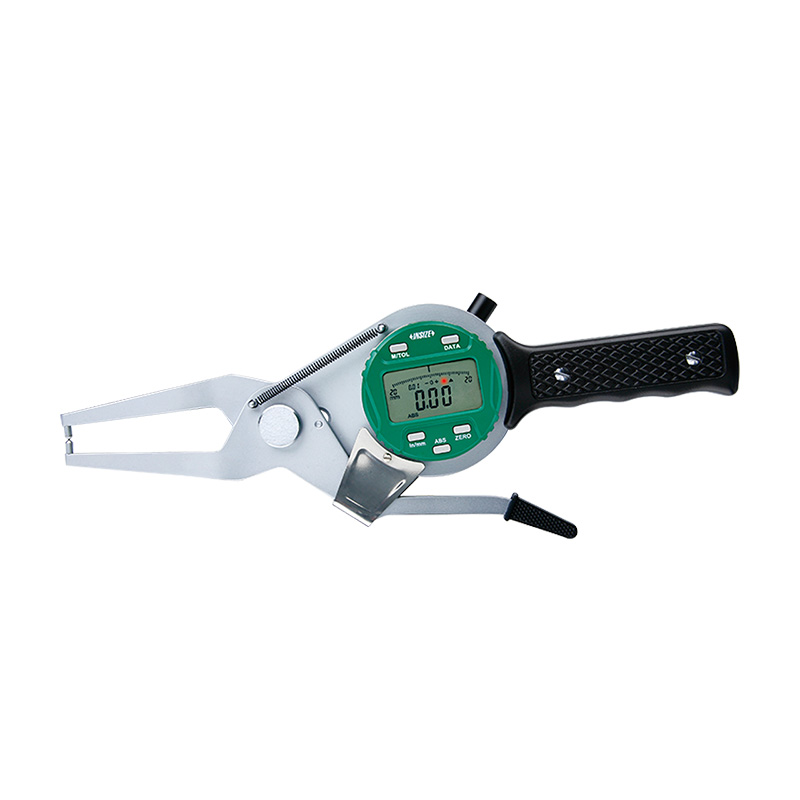

Digital External Caliper Gauges
Code: 2132
Carbide measuring tips
Reading in digit and analog
With transmission button and signal light
Display can be rotated by 320º
Button function: on/off, zero, tolerance Go and No-Go display, data preset, measuring direction change, max./min./TIR measurement, inch/metric conversion, absolute/incremental measurement, data output
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2132-20 | 0-20mm/0-0.8" | ±0.04mm | 0.01mm/0.0005" |
| 2132-40 | 20-40mm/0.8-1.6" | ±0.04mm | 0.01mm/0.0005" |
| 2132-60 | 40-60mm/1.6-2.4" | ±0.04mm | 0.01mm/0.0005" |
| 2132-80 | 60-80mm/2.4-3.2" | ±0.04mm | 0.01mm/0.0005" |
| 2132-100 | 80-100mm/3.2-4" | ±0.04mm | 0.01mm/0.0005" |
