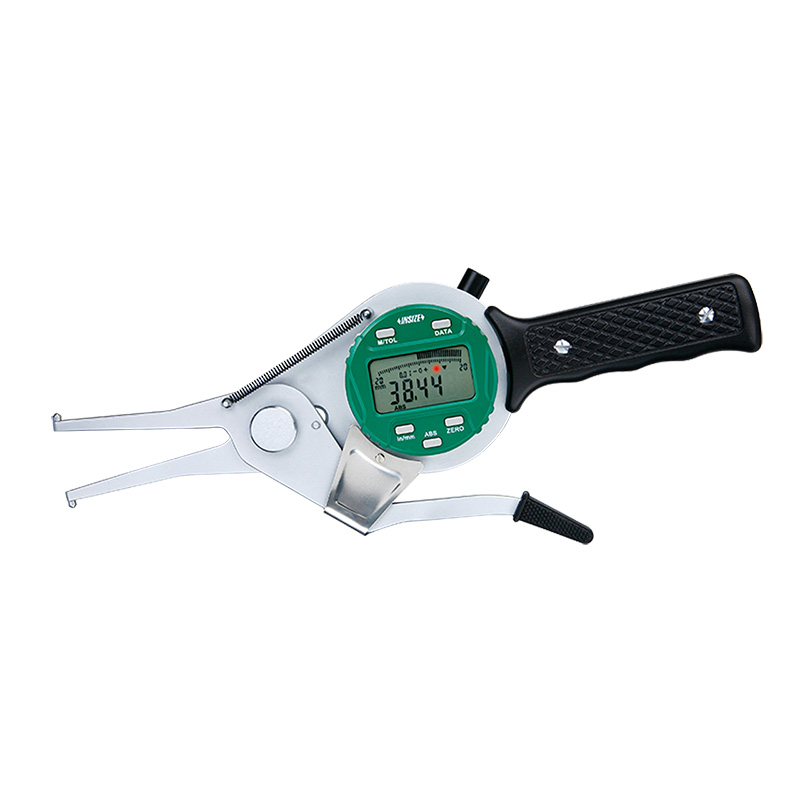

Digital Internal Caliper Gauges
Code: 2151
Carbide measuring tips
Reading in digit and analog
With transmission button and signal light
Display can be rotated by 320º
Button function: on/off, zero, tolerance Go and No-Go display, data preset, measuring direction change, max./min./ TIR measurement, inch/metric conversion, data output, absolute/incremental measurement
CR2032 battery, automatic power off (time is adjustable)
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2151-35 | 15-35mm/0.6-1.4" | ±0.04mm | 0.01mm/0.0005" |
| 2151-AL35 | 15-35mm/0.6-1.4" | ±0.04mm | 0.01mm/0.0005" |
| 2151-55 | 35-55mm/1.4-2.2" | ±0.04mm | 0.01mm/0.0005" |
| 2151-AL55 | 35-55mm/1.4-2.2" | ±0.04mm | 0.01mm/0.0005" |
| 2151-75 | 55-75mm/2.2-3" | ±0.04mm | 0.01mm/0.0005" |
| 2151-AL75 | 55-75mm/2.2-3" | ±0.04mm | 0.01mm/0.0005" |
| 2151-95 | 75-95mm/3-3.8" | ±0.04mm | 0.01mm/0.0005" |
| 2151-115 | 95-115mm/3.8-4.6" | ±0.04mm | 0.01mm/0.0005" |
| 2151-135 | 115-135mm/4.6-5.4" | ±0.04mm | 0.01mm/0.0005" |
