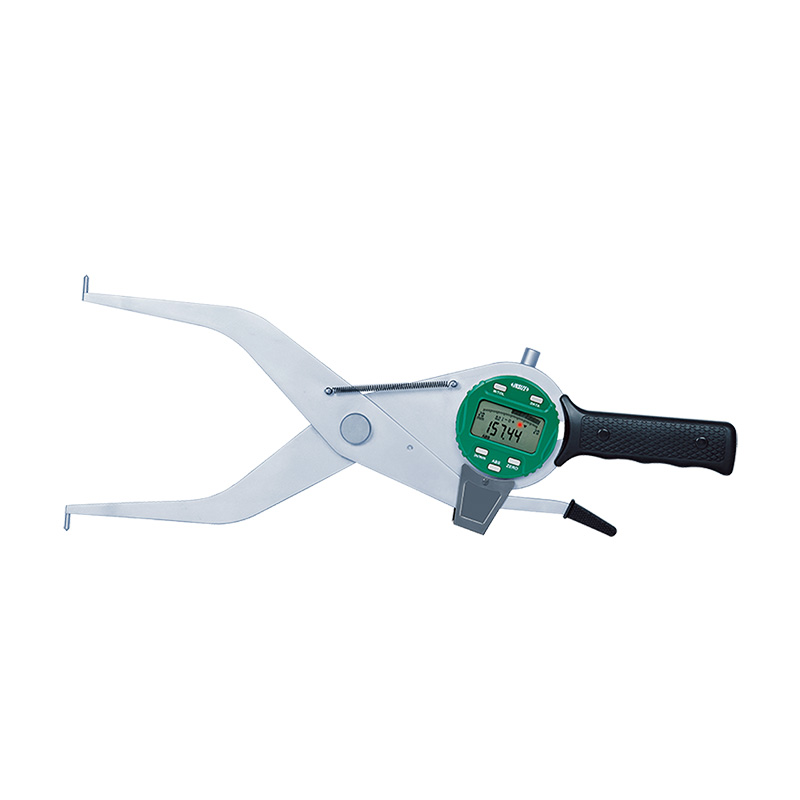

Large Range Internal Digital Caliper Gauges
Code: 2335
Carbide measuring tips
Reading in digit and analog
With transmission button and signal light
Display can be rotated by 320º
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2335-155 | 135-155mm/5.32-6.10" | ±0.04mm | 0.01mm/0.0005" |
| 2335-175 | 155-175mm/6.10-6.89" | ±0.04mm | 0.01mm/0.0005" |
| 2335-195 | 175-195mm/6.68-7.68" | ±0.04mm | 0.01mm/0.0005" |
| 2335-215 | 195-215mm/7.68-8.46" | ±0.04mm | 0.01mm/0.0005" |
| 2335-235 | 215-235mm/8.46-9.25" | ±0.04mm | 0.01mm/0.0005" |
| 2335-255 | 235-255mm/9.25-10.04" | ±0.04mm | 0.01mm/0.0005" |
| 2335-275 | 255-275mm/10.04-10.83" | ±0.04mm | 0.01mm/0.0005" |
| 2335-295 | 275-295mm/10.83-11.61" | ±0.04mm | 0.01mm/0.0005" |
| 2335-315 | 295-315mm/11.61-12.40" | ±0.04mm | 0.01mm/0.0005" |
| 2335-335 | 315-335mm/12.40-13.19" | ±0.04mm | 0.01mm/0.0005" |
| 2335-355 | 335-355mm/13.19-13.98" | ±0.04mm | 0.01mm/0.0005" |
| 2335-375 | 355-375mm/13.98-14.76" | ±0.04mm | 0.01mm/0.0005" |
