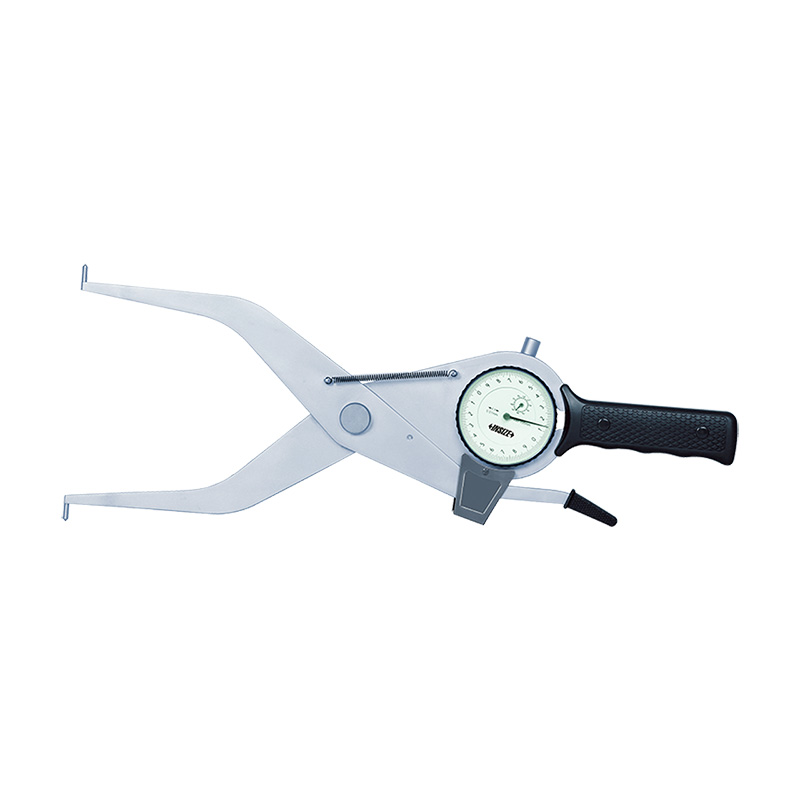

Large Range Internal Dial Caliper Gauges
Code: 2334
Specification
| Code |
Range |
Accuracy |
Graduation |
| 2334-155 |
135-155mm |
±0.04mm |
0.01mm |
| 2334-175 |
155-175mm |
±0.04mm |
0.01mm |
| 2334-195 |
175-195mm |
±0.04mm |
0.01mm |
| 2334-215 |
195-215mm |
±0.04mm |
0.01mm |
| 2334-235 |
215-235mm |
±0.04mm |
0.01mm |
| 2334-255 |
235-255mm |
±0.04mm |
0.01mm |
| 2334-275 |
255-275mm |
±0.04mm |
0.01mm |
| 2334-295 |
275-295mm |
±0.04mm |
0.01mm |
| 2334-315 |
295-315mm |
±0.04mm |
0.01mm |
| 2334-335 |
315-335mm |
±0.04mm |
0.01mm |
| 2334-355 |
335-355mm |
±0.04mm |
0.01mm |
| 2334-375 |
355-375mm |
±0.04mm |
0.01mm |
