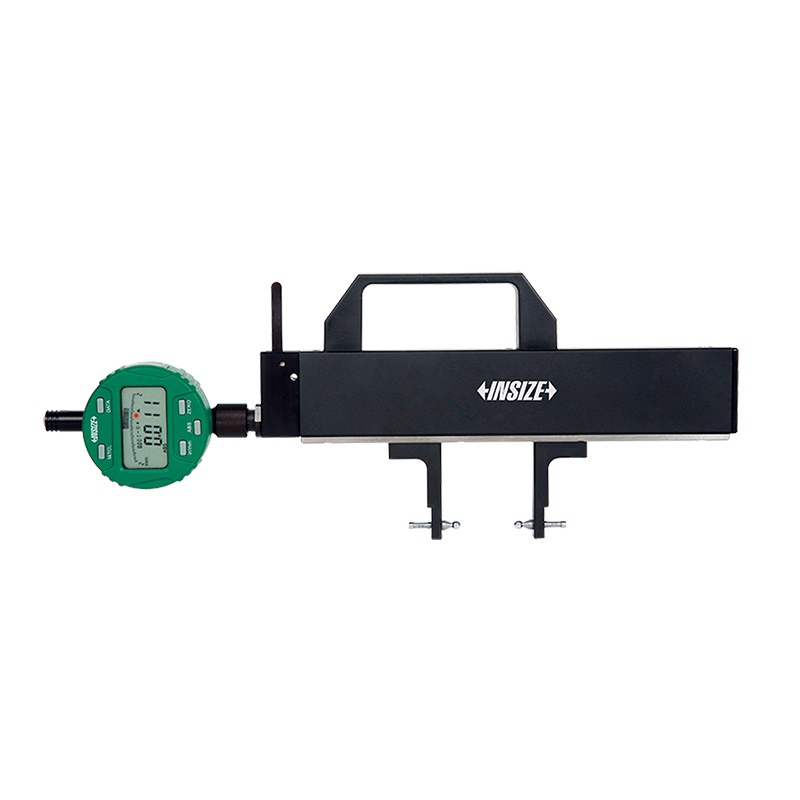

Comparison Gauges
Code: 2252
Measure external diameter, internal diameter and over-pin diameter of gears
Total range of movable point: 8mm, effective range of movable point: ±2mm
Specification
| Code | Accuracy | Repeatability | Range of external diameter | Range of internal diameter |
|---|---|---|---|---|
| 2252-102 | ±5μm | 1µm | 0-90mm/0-3.54" | — |
| 2252-120 | ±5μm | 2μm | 0-80mm/0-3.15" | — |
| 2252-202 | ±5μm | 1µm | — | 80-180mm/3.15-7.08" |
| 2252-220 | ±5μm | 2μm | — | 90-180mm/3.54-7.08" |
