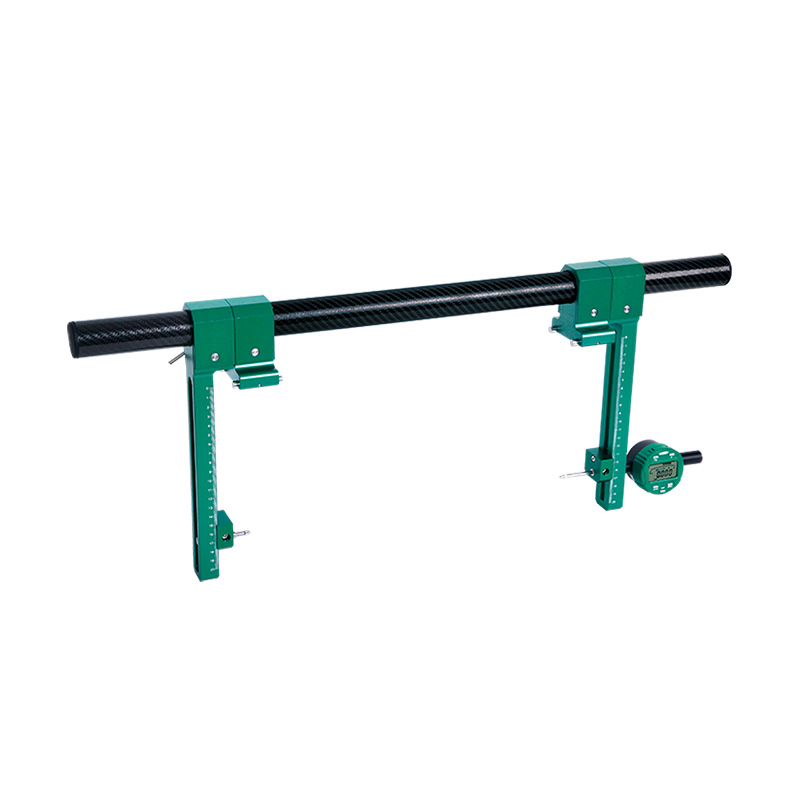

Carbon Fiber Comparison Gauges
Code: 2931
Measure outer diameter, inside diameter, holes distance and cylindrical workpiece length
Carbon fiber rods, light weight, not easy to deform, no temperature expand
Specification
| Code | Repeatability | Measuring depth (H) | Maximum measuring range |
|---|---|---|---|
| 2931-D1000A | 5μm | 0-100mm | 1000mm |
| 2931-D1000B | 10μm | 0-200mm | 1000mm |
| 2931-D1000C | 25μm | 0-300mm | 1000mm |
| 2931-D1500A | 8μm | 0-100mm | 1500mm |
| 2931-D1500B | 15μm | 0-200mm | 1500mm |
| 2931-D1500C | 30μm | 0-300mm | 1500mm |
| 2931-D2000A | 10μm | 0-100mm | 2000mm |
| 2931-D2000B | 20μm | 0-200mm | 2000mm |
| 2931-D2000C | 35μm | 0-300mm | 2000mm |
| 2931-D2500A | 12μm | 0-100mm | 2500mm |
| 2931-D2500B | 25μm | 0-200mm | 2500mm |
| 2931-D2500C | 50μm | 0-300mm | 2500mm |
| 2931-D3000A | 14μm | 0-100mm | 3000mm |
| 2931-D3000B | 30μm | 0-200mm | 3000mm |
| 2931-D3000C | 60μm | 0-300mm | 3000mm |
| 2931-D4000A | 16μm | 0-100mm | 4000mm |
| 2931-D4000B | 35μm | 0-200mm | 4000mm |
| 2931-D4000C | 65μm | 0-300mm | 4000mm |
| 2931-D5000A | 25μm | 0-100mm | 5000mm |
| 2931-D5000B | 40μm | 0-200mm | 5000mm |
| 2931-D5000C | 70μm | 0-300mm | 5000mm |
| 2931-D6000A | 28μm | 0-100mm | 6000mm |
| 2931-D6000B | 50μm | 0-200mm | 6000mm |
| 2931-D6000C | 80μm | 0-300mm | 6000mm |
| 2931-D7000A | 30μm | 0-100mm | 7000mm |
| 2931-D7000B | 55μm | 0-200mm | 7000mm |
| 2931-D7000C | 100μm | 0-300mm | 7000mm |
| 2931-D8000A | 32μm | 0-100mm | 8000mm |
| 2931-D8000B | 60μm | 0-200mm | 8000mm |
| 2931-D8000C | 110μm | 0-300mm | 8000mm |
| 2931-D9000A | 35μm | 0-100mm | 9000mm |
| 2931-D9000B | 70μm | 0-200mm | 9000mm |
| 2931-D9000C | 120μm | 0-300mm | 9000mm |
