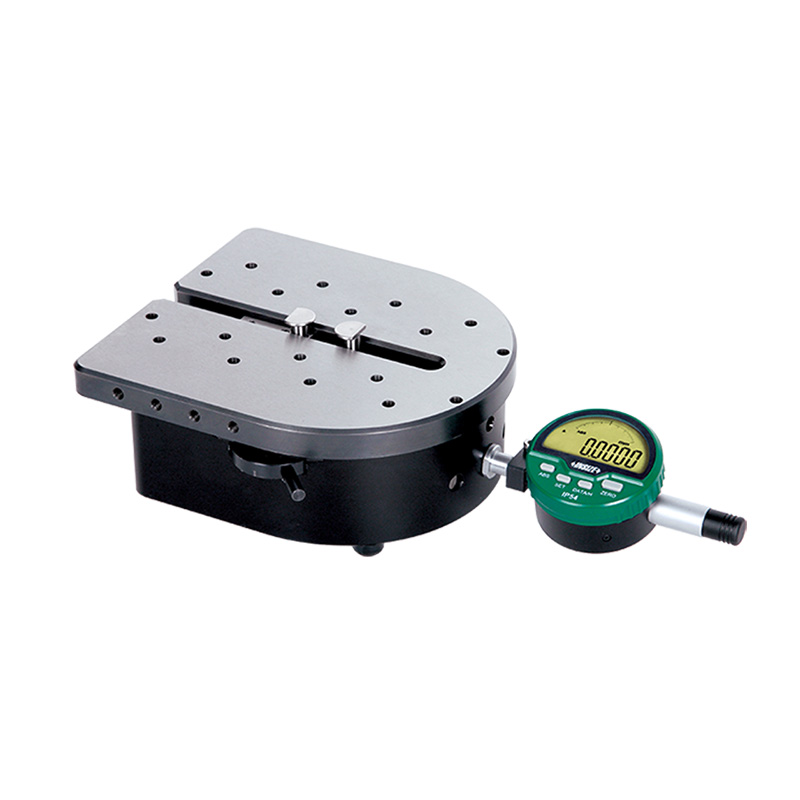

UNIVERSAL COMPARISON MEASURING BENCH
Code: 6848
Switchable measurement direction for measuring internal and external diameter
Adjustable measuring force: 2-5N
Movable probe travel: 20mm
Digital indicator with IP54 dust/waterproof (when cap is lifted, no dust/waterproof)
Digital indicator uses absolute encoder, the original data remains after power off
Digital indicator with automatic power off
Digital indicator reading in digital and analog
Digital indicator display can be rotated by 270°
Data output cable (keyboard format) is included in digital indicator
Specification
| Code | Accuracy | Resolution | Repeatability | Range of external diameter | Range of internal diameter |
|---|---|---|---|---|---|
| 6848-145 | 5µm | 0.0005mm/0.00002 | 1µm | 0-100mm | 25-120mm |
