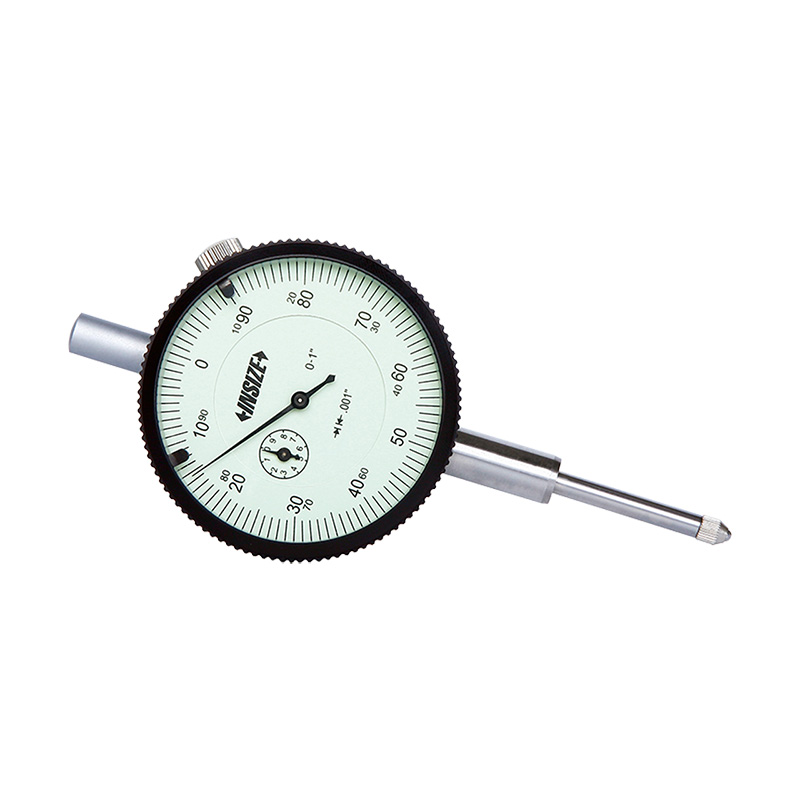

Inch Dial Indicators
Code: 2307
Meet ASME B89.1.10M-2001
With lug back
Supplied with limit pointers and bezel clamp
Optional accessory: backs (page 315~316), contact points (page 310~314)
Specification
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 2307-025 | 0.25" | ±0.001'' | 0.001" |
| 2307-05 | 0.5" | ±0.002" | 0.001" |
| 2307-1 | 1" | ±0.002'' | 0.001" |
| 2307-2 | 2" | ±0.004'' | 0.001" |
| 2307-0255 | 0.25" | ±0.0015'' | 0.0005" |
| 2307-055 | 0.5" | ±0.0015'' | 0.0005" |
| 2307-105 | 1" | ±0.002'' | 0.0005" |
| 2307-205 | 2" | ±0.002'' | 0.0005" |
