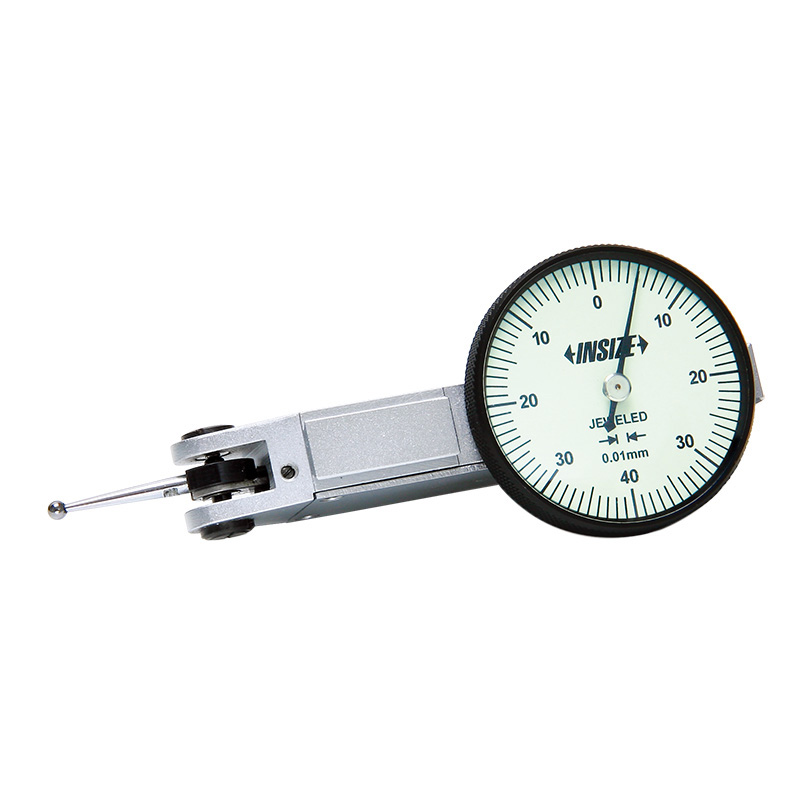

Dial Test Indicators
Code: 2380
Meet DIN2270 (except 2380-02, 2381-02, 2381-021)
Jeweled bearing
Carbide contact point
Two measuring directions
Anti magnetic body
Supplied with two clamps: diameter Ø4mm and Ø8mm
Specification
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 2380-08 | 0.8mm | 13µm | 0.01mm |
| 2381-08 | 0.8mm | 13µm | 0.01mm |
| 2380-02 | 0.2mm | 6µm | 0.002mm |
| 2381-02 | 0.2mm | 6µm | 0.002mm |
| 2381-021 | 0.2mm | 6µm | 0.001mm |
| 2380-31 | 0.03" | ±0.001" | 0.001" |
| 2380-35 | 0.03" | ±0.0005" | 0.0005" |
| 2380-301 | 0.008" | ±0.0001" | 0.0001" |
| 2381-31 | 0.03" | ±0.001" | 0.001" |
| 2381-35 | 0.03" | ±0.0005" | 0.0005" |
| 2381-301 | 0.008" | ±0.0001" | 0.0001" |
