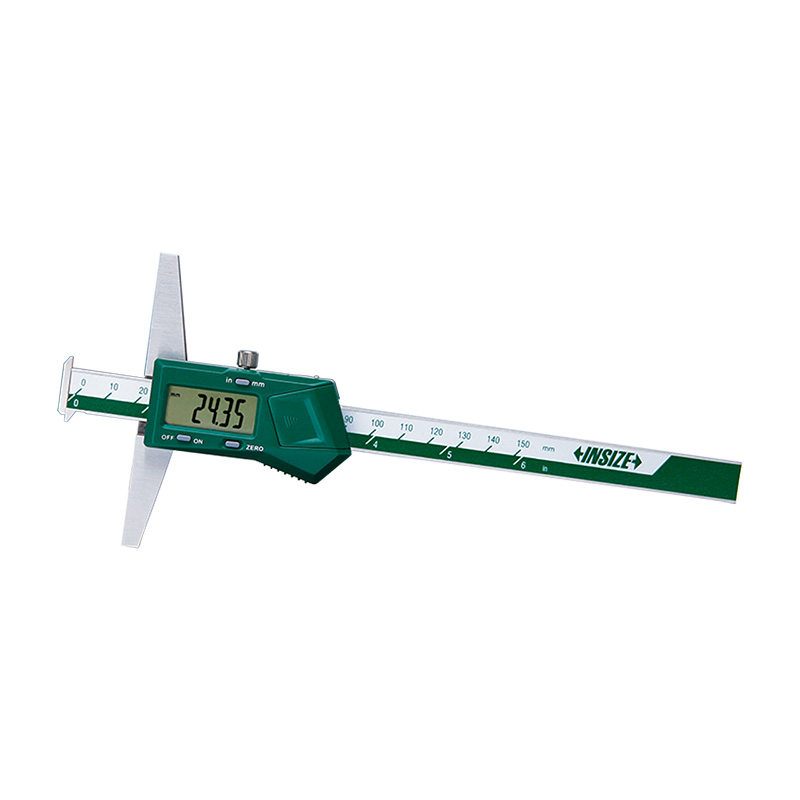

Digital Double Hook Depth Gauges
Code: 1144
Non waterproof
Buttons: on/off, zero, mm/inch
Automatic power off, move the digital unit to turn on power
Meet DIN862
Battery CR2032
Made of stainless steel
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 1144-150A | 0-150mm/0-6" | ±0.03mm | 0.01mm/0.0005" |
| 1144-200A | 0-200mm/0-8" | ±0.03mm | 0.01mm/0.0005" |
| 1144-300A | 0-300mm/0-12" | ±0.03mm | 0.01mm/0.0005" |
| 1144-500A | 0-500mm/0-20" | ±0.05mm | 0.01mm/0.0005" |
| 1144-5001A | 0-500mm/0-20" | ±0.05mm | 0.01mm/0.0005" |
| 1144-1000A | 0-1000mm/0-40" | ±0.07mm | 0.01mm/0.0005" |
| 1144-10001A | 0-1000mm/0-40" | ±0.07mm | 0.01mm/0.0005" |
| 1144-10002A | 0-1000mm/0-40" | ±0.07mm | 0.01mm/0.0005" |
| 1144-150AWL | 0-150mm/0-6" | ±0.03mm | 0.01mm/0.0005" |
| 1144-200AWL | 0-200mm/0-8" | ±0.03mm | 0.01mm/0.0005" |
| 1144-300AWL | 0-300mm/0-12" | ±0.03mm | 0.01mm/0.0005" |
| 1144-500AWL | 0-500mm/0-20" | ±0.05mm | 0.01mm/0.0005" |
| 1144-5001AWL | 0-500mm/0-20" | ±0.05mm | 0.01mm/0.0005" |
| 1144-1000AWL | 0-1000mm/0-40" | ±0.07mm | 0.01mm/0.0005" |
| 1144-10001AWL | 0-1000mm/0-40" | ±0.07mm | 0.01mm/0.0005" |
| 1144-10002AWL | 0-1000mm/0-40" | ±0.07mm | 0.01mm/0.0005" |
