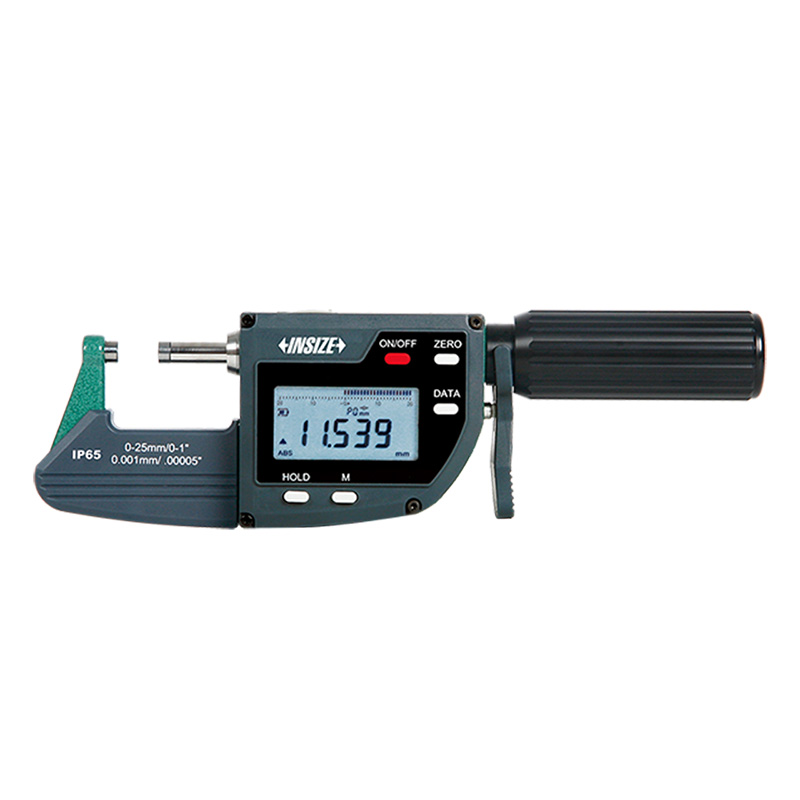

Digital Micrometers/Snap Gauges (Basic Type)
Code: 3358
Absolute encoder, the original data remains after power off
One turn of sleeve makes 10mm spindle feed
Measurement accuracy is not affected by the use of sleeve
Press the fork, the spindle retracts 3mm
Carbide measuring faces
Measuring force 5-10N
Supplied with gauge blocks for zero setting (except 0-25mm/0-1")
Power: rechargeable battery, for 24 hours continuous working
Specification
| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 3358-25 | 0-25mm/0-1" | 2μm | 0.001mm/0.00005" | with data interface |
| 3358-50 | 25-50mm/1-2" | 2μm | 0.001mm/0.00005" | with data interface |
| 3358-75 | 50-75mm/2-3" | 3μm | 0.001mm/0.00005" | with data interface |
| 3358-100 | 75-100mm/3-4" | 3μm | 0.001mm/0.00005" | with data interface |
| 3358-25AWL | 0-25mm/0-1" | 2μm | 0.001mm/0.00005" | built-in wireless |
| 3358-50AWL | 25-50mm/1-2" | 2μm | 0.001mm/0.00005" | built-in wireless |
| 3358-75AWL | 50-75mm/2-3" | 3μm | 0.001mm/0.00005" | built-in wireless |
| 3358-100AWL | 75-100mm/3-4" | 3μm | 0.001mm/0.00005" | built-in wireless |
