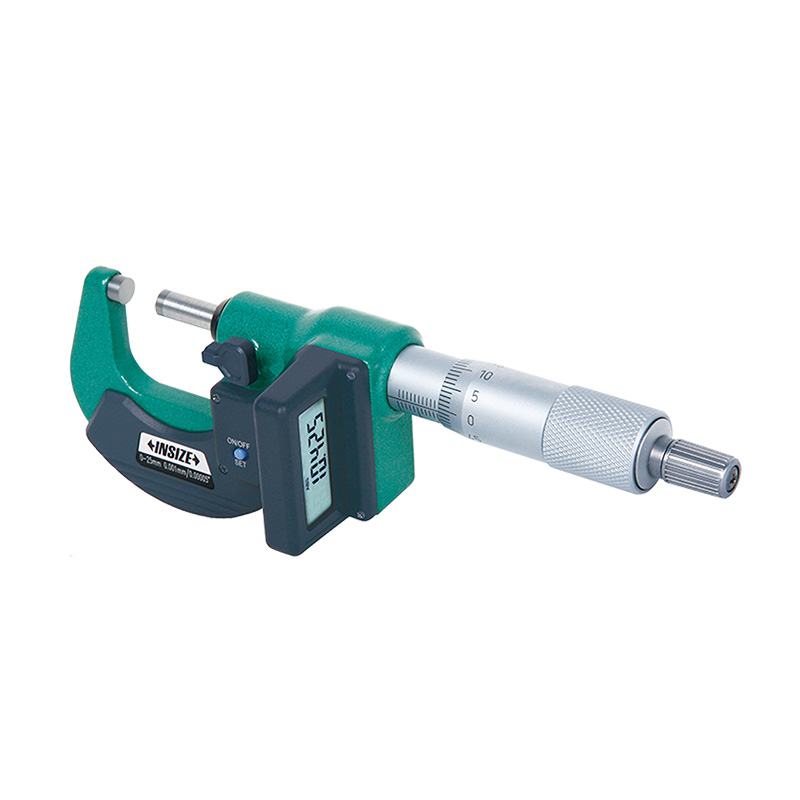

Digital Vertical Micrometers
Code: 3565
Measure the thickness of plates for easy reading
IP65 dust/waterproof
Button function: on/off, set, mm/inch, ABS/INC
Data output
Automatic power off
Carbide spindle tip
Ratchet stop
Supplied with setting standards (except 0-25mm/0-1")
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 3565-25A | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" |
| 3565-50A | 25-50mm/1-2" | ±2μm | 0.001mm/0.00005" |
| 3565-25BA | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" |
| 3565-50BA | 25-50mm/1-2" | ±2μm | 0.001mm/0.00005" |
