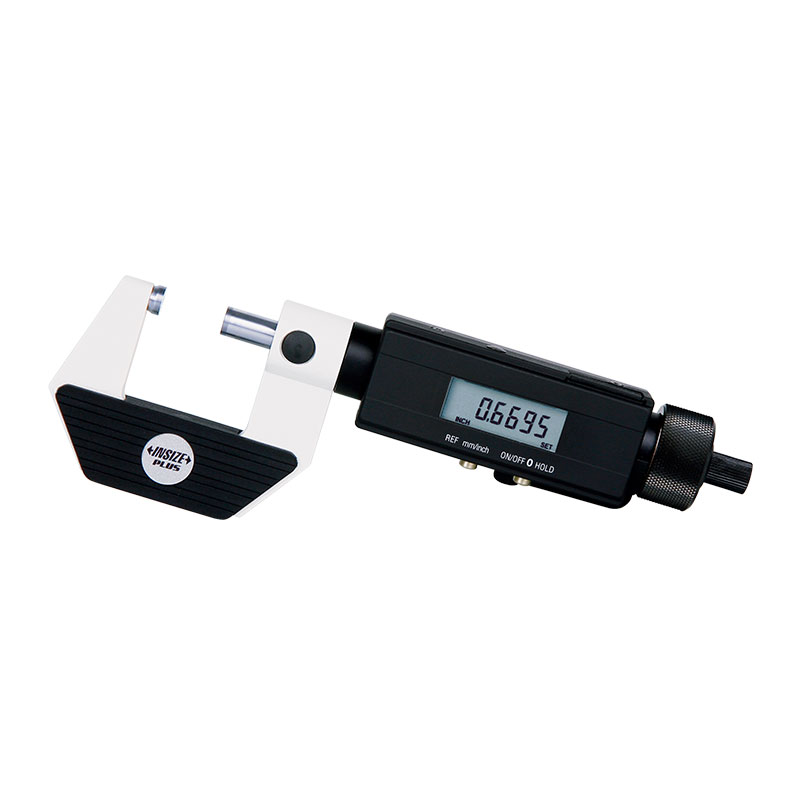

Non-Rotating Spindle Digital Micrometers
Code: 3632
Measuring force: 5-10N
Lever force measuring device, suitable for mass measurement
No-rotating spindle, suitable for measuring cylindrical workpiece
Quick measurement: one turn of sleeve or ratchet stop makes 2mm spindle feed
Carbide measuring faces
Data output
Button function: mm/inch, max./min. value tracking, preset value, hold, on/off, zero
Ratchet sets force measurement
CR2032 battery, automatic power off
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 3632-30A | 0-30mm/0-1.18" | stroke≤25mm:±2μm， stroke>25mm:±3μm | 0.01mm/0.0005"， 0.001mm/0.00005"， 0.0005mm/0.00002" |
| 3632-55A | 25-55mm/0.98-2.17" | stroke≤25mm:±2μm， stroke>25mm:±3μm | 0.01mm/0.0005"， 0.001mm/0.00005"， 0.0005mm/0.00002" |
| 3632-80A | 50-80mm/1.97-3.15" | stroke≤25mm:±3μm， stroke>25mm:±4μm | 0.01mm/0.0005"， 0.001mm/0.00005"， 0.0005mm/0.00002" |
| 3632-105A | 75-105mm/2.95-4.13" | stroke≤25mm:±3μm， stroke>25mm:±4μm | 0.01mm/0.0005"， 0.001mm/0.00005"， 0.0005mm/0.00002" |
| 3632-130A | 100-130mm/3.94-5.12" | stroke≤25mm:±3μm， stroke>25mm:±5μm | 0.01mm/0.0005"， 0.001mm/0.00005"， 0.0005mm/0.00002" |
| 3632-155A | 125-155mm/4.92-6.1" | stroke≤25mm:±3μm， stroke>25mm:±5μm | 0.01mm/0.0005"， 0.001mm/0.00005"， 0.0005mm/0.00002" |
| 3632-180A | 150-180mm/5.91-7.09" | stroke≤25mm:±4μm， stroke>25mm:±6μm | 0.01mm/0.0005"， 0.001mm/0.00005"， 0.0005mm/0.00002" |
| 3632-205A | 175-205mm/6.89-8.07" | stroke≤25mm:±4μm， stroke>25mm:±6μm | 0.01mm/0.0005"， 0.001mm/0.00005"， 0.0005mm/0.00002" |
| 3632-230A | 200-230mm/7.87-9.06" | stroke≤25mm:±4μm， stroke>25mm:±6μm | 0.01mm/0.0005"， 0.001mm/0.00005"， 0.0005mm/0.00002" |
| 3632-255A | 225-255mm/8.86-10.04" | stroke≤25mm:±4μm， stroke>25mm:±6μm | 0.01mm/0.0005"， 0.001mm/0.00005"， 0.0005mm/0.00002" |
| 3632-280A | 250-280mm/9.84-11.02" | stroke≤25mm:±5μm， stroke>25mm:±7μm | 0.01mm/0.0005"， 0.001mm/0.00005"， 0.0005mm/0.00002" |
| 3632-305A | 275-305mm/10.83-12.01" | stroke≤25mm:±5μm， stroke>25mm:±7μm | 0.01mm/0.0005"， 0.001mm/0.00005"， 0.0005mm/0.00002" |
