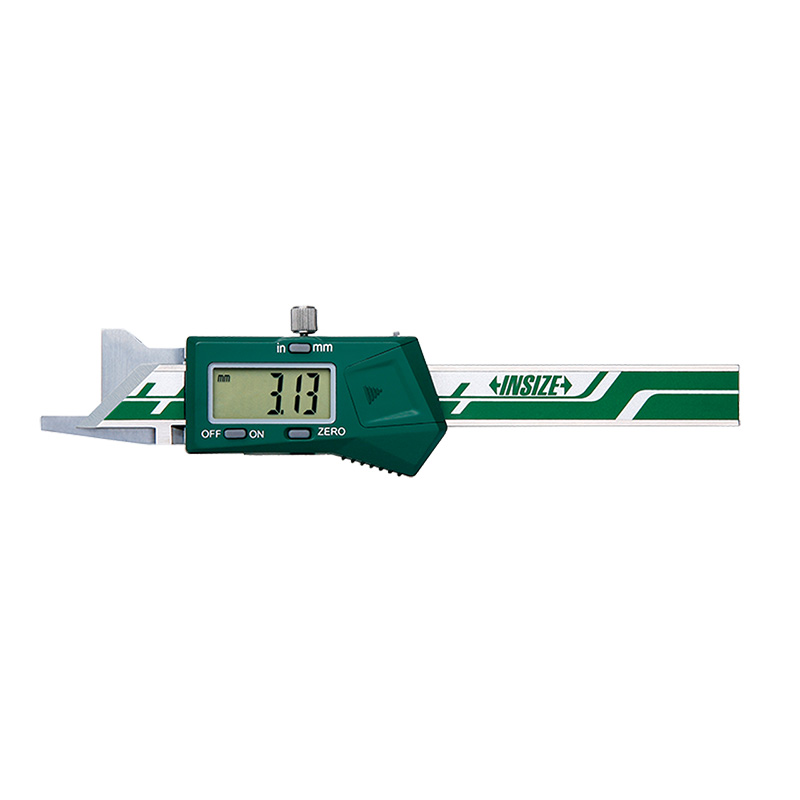

Digital Chamfer Gauges
Code: 1180
Non waterproof
Measure 15º/20º/30º/45º/60º chamfer dimension
Buttons: on/off, zero, mm/inch
Automatic power off, move the digital unit to turn on power
Battery CR2032
Data output
Made of stainless steel
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 1180-6 | 0-10mm/0-0.39" | ±0.06mm | 0.01mm/0.0005" |
| 1180-61 | 0-10mm/0-0.39" | ±0.06mm | 0.01mm/0.0005" |
| 1180-62 | 0-10mm/0-0.39" | ±0.06mm | 0.01mm/0.0005" |
| 1180-63 | 0-10mm/0-0.39" | ±0.06mm | 0.01mm/0.0005" |
| 1180-66 | 0-10mm/0-0.39" | ±0.06mm | 0.01mm/0.0005" |
| 1180-6WL | 0-10mm/0-0.39" | ±0.06mm | 0.01mm/0.0005" |
| 1180-61WL | 0-10mm/0-0.39" | ±0.06mm | 0.01mm/0.0005" |
| 1180-62WL | 0-10mm/0-0.39" | ±0.06mm | 0.01mm/0.0005" |
| 1180-63WL | 0-10mm/0-0.39" | ±0.06mm | 0.01mm/0.0005" |
| 1180-66WL | 0-10mm/0-0.39" | ±0.06mm | 0.01mm/0.0005" |
