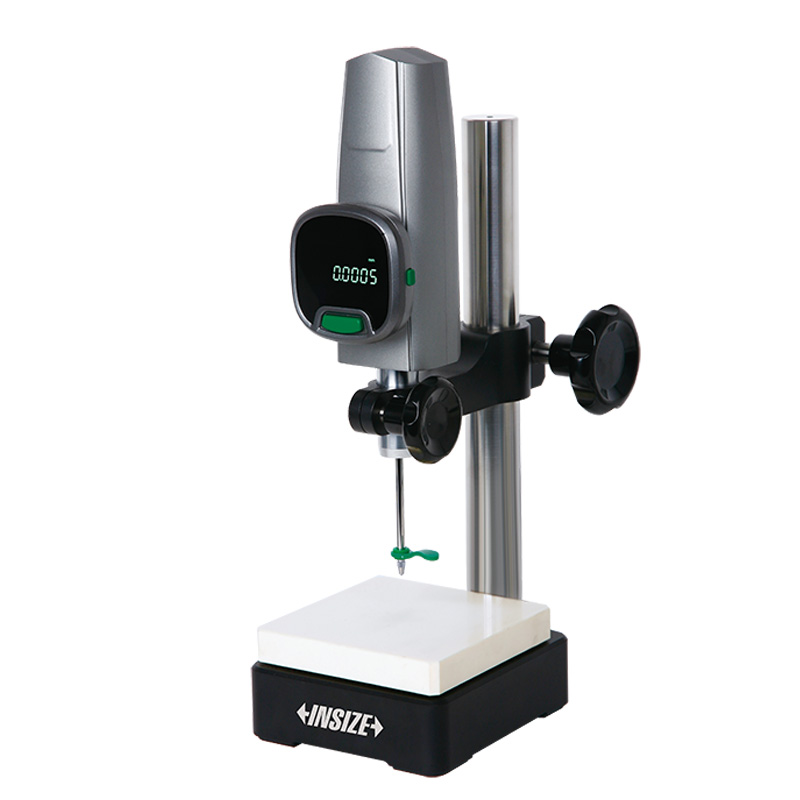

High Precision Digital Height Gauges
Code: 1155
High stability, high precision, high response speed (5000mm/s)
High brightness LED display
Ceramic base flatness: 1µm

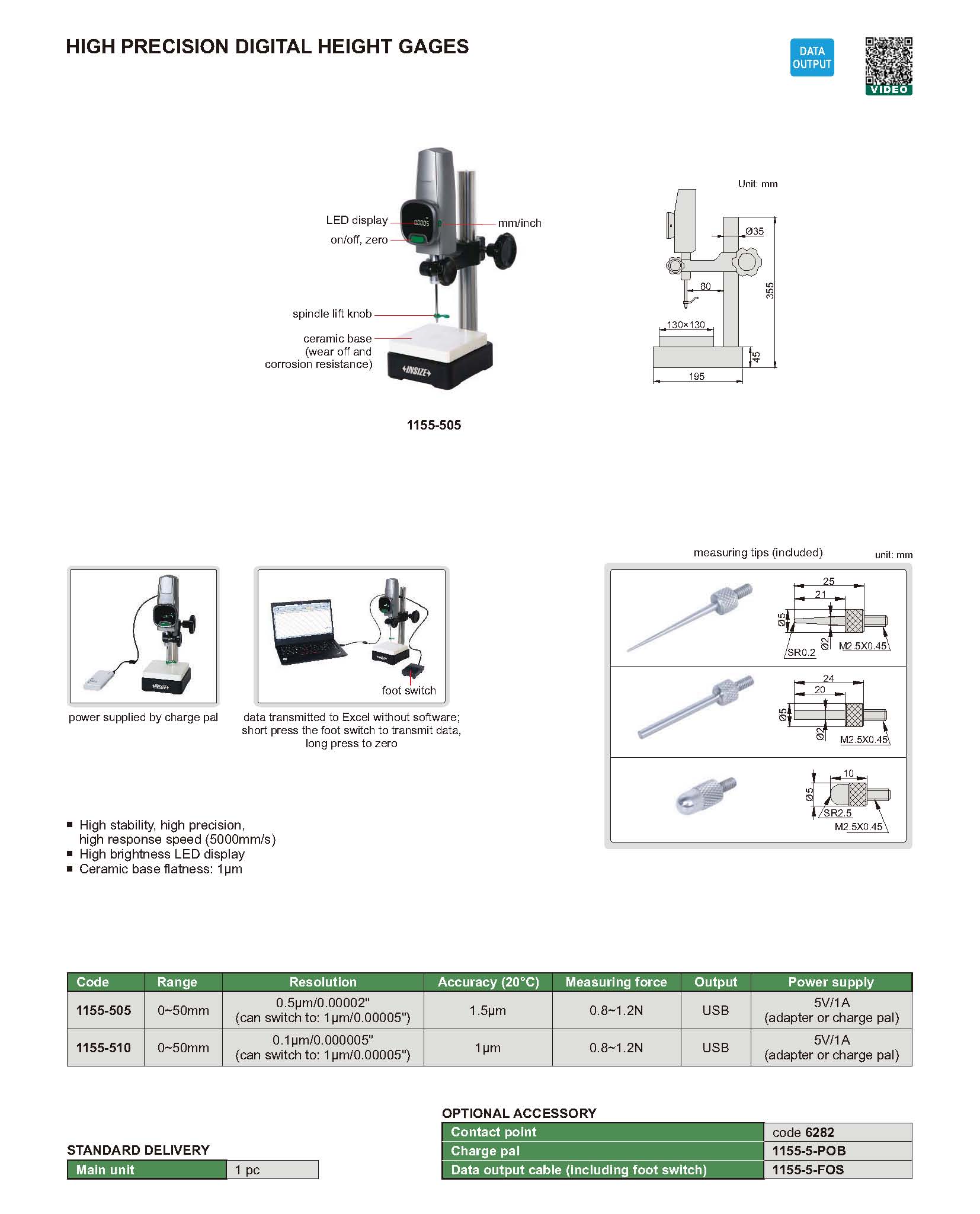

Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 1155-505 | 0~50mm | 1.5µm | 0.5µm/0.00002" (can switch to: 1µm/0.00005") |
| 1155-510 | 0~50mm | 1µm | 0.1µm/0.000005" (can switch to: 1µm/0.00005") |
View the complete
product specifications
