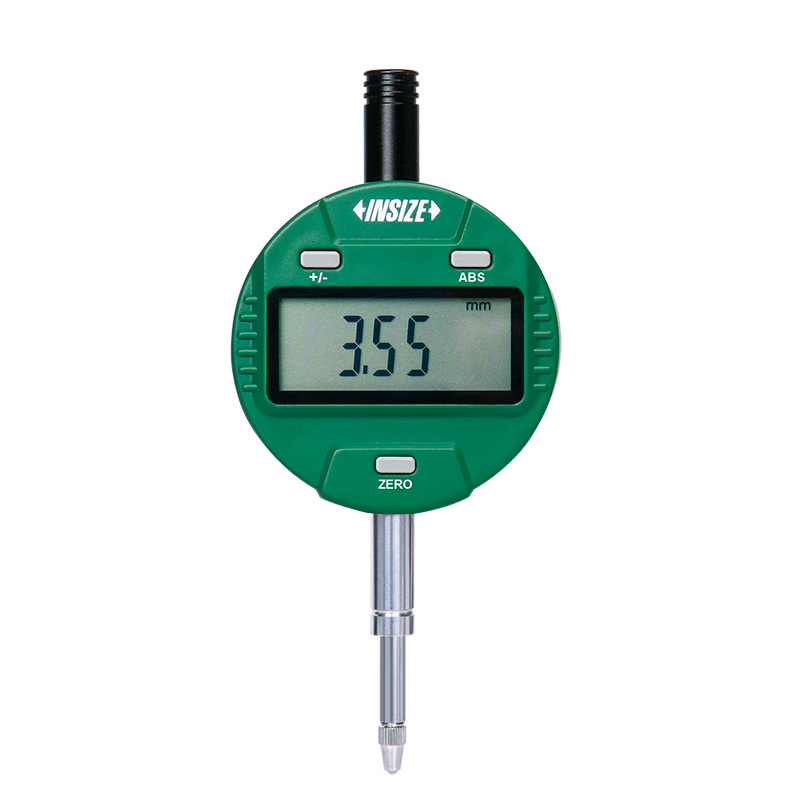

Metric Digital Indicators
Code: 2116
Button function: on/off, zero, data preset, change measuring direction, absolute/incremental measurement
Switchable high/low frequency measurement mode, high frequency mode is suitable for high speed moving of spindle and has large power consumption, low power consumption in low frequency mode
Keep preset data in memory after restart
CR2032 battery, automatic power off (time is adjustable)
Data output
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2116-101F | 12.7mm | 5µm | 0.001mm |
| 2116-251F | 25.4mm | 5µm | 0.001mm |
| 2116-501F | 50.8mm | 6µm | 0.001mm |
| 2116-101 | 12.7mm | 5µm | 0.001mm |
| 2116-251 | 25.4mm | 5µm | 0.001mm |
| 2116-501 | 50.8mm | 6µm | 0.001mm |
| 2116-251P | 25.4mm | 5µm | 0.001mm |
| 2116-501P | 50.8mm | 6µm | 0.001mm |
| 2116-10F | 12.7mm | 20µm | 0.01mm |
| 2116-25F | 25.4mm | 20µm | 0.01mm |
| 2116-50F | 50.8mm | 30µm | 0.01mm |
| 2116-10 | 12.7mm | 20µm | 0.01mm |
| 2116-25 | 25.4mm | 20µm | 0.01mm |
| 2116-50 | 50.8mm | 30µm | 0.01mm |
| 2116-25P | 25.4mm | 20µm | 0.01mm |
| 2116-50P | 50.8mm | 30µm | 0.01mm |
