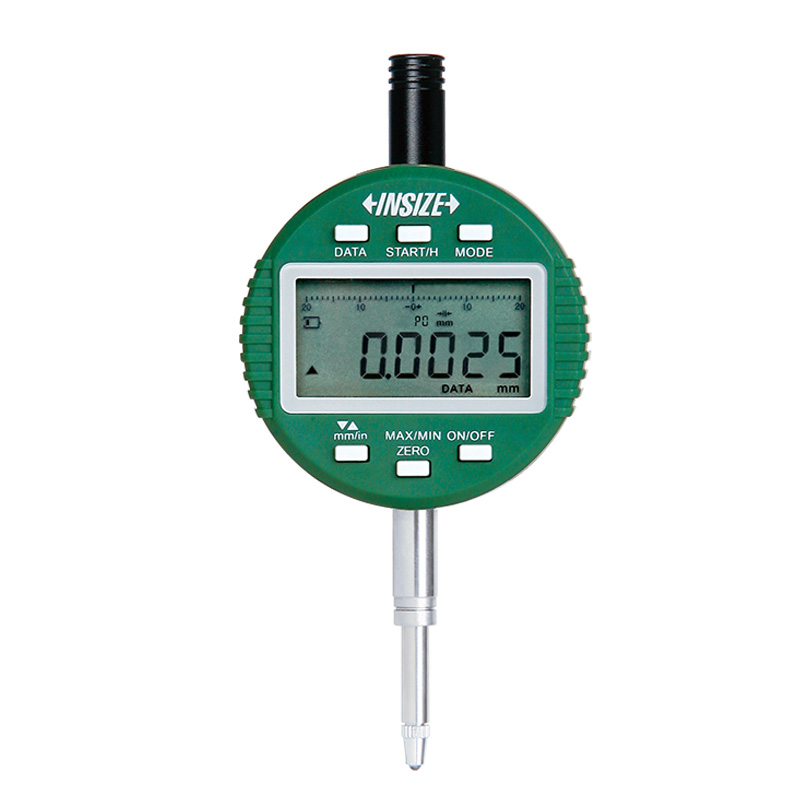

Wireless High Precision Digital Indicators
Code: 2134
Built-in wireless transmission, Zigbee singal
Linear ball bearings for ten million times use
Absolute encoder, the original data remains after power off
Reading in digital and analog
Button function: data output, tolerance, data preset, data hold, measuring direction change, max./min./TIR, power off time, on/off, mm/inch, adjust resolution
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2134-10 | 12.7mm/0.5" | 3µm | 0.0005mm/0.00002" |
| 2134-10L | 12.7mm/0.5" | 3µm | 0.0005mm/0.00002" |
| 2134-25 | 25.4mm/1" | 3µm | 0.0005mm/0.00002" |
| 2134-50 | 50.8mm/2" | 3µm | 0.0005mm/0.00002" |
| 2134-101 | 12.7mm/0.5" | 1.5µm | 0.0002mm/0.00001" |
| 2134-101L | 12.7mm/0.5" | 1.5µm | 0.0002mm/0.00001" |
| 2134-251 | 25.4mm/1" | 1.8µm | 0.0002mm/0.00001" |
