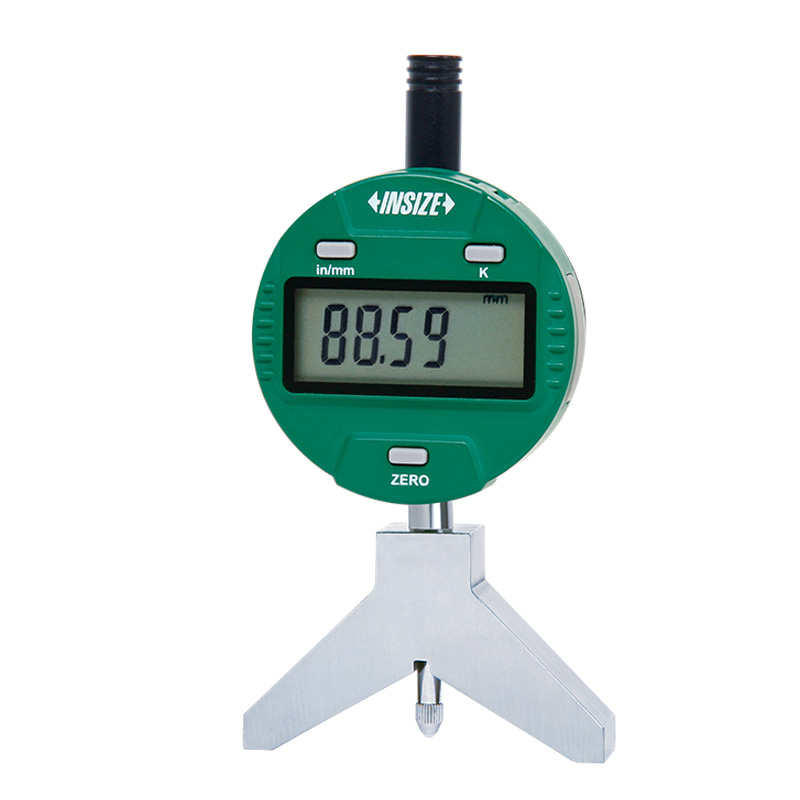

Digital Radius Gauges
Code: 2188
Measure radius of external arc, arc angle of measured surface should be larger than 60°
Display radius value, no need to calculate
Button function: on/off, zero, data preset, inch/mm
Keep preset data in memory after restart
CR2032 battery, automatic power off (time is adjustable)
Data output
Stainless steel base
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2188-55 | 4-53mm/0.16-2.09" | ±0.02mm | 0.01mm/0.0005" |
| 2188-143 | 48-143mm/1.89-5.63" | ±0.03mm | 0.01mm/0.0005" |
| 2188-233 | 138-233mm/5.43-9.17" | ±0.03mm | 0.01mm/0.0005" |
| 2188-323 | 228-323mm/8.98-12.72" | ±0.04mm | 0.01mm/0.0005" |
