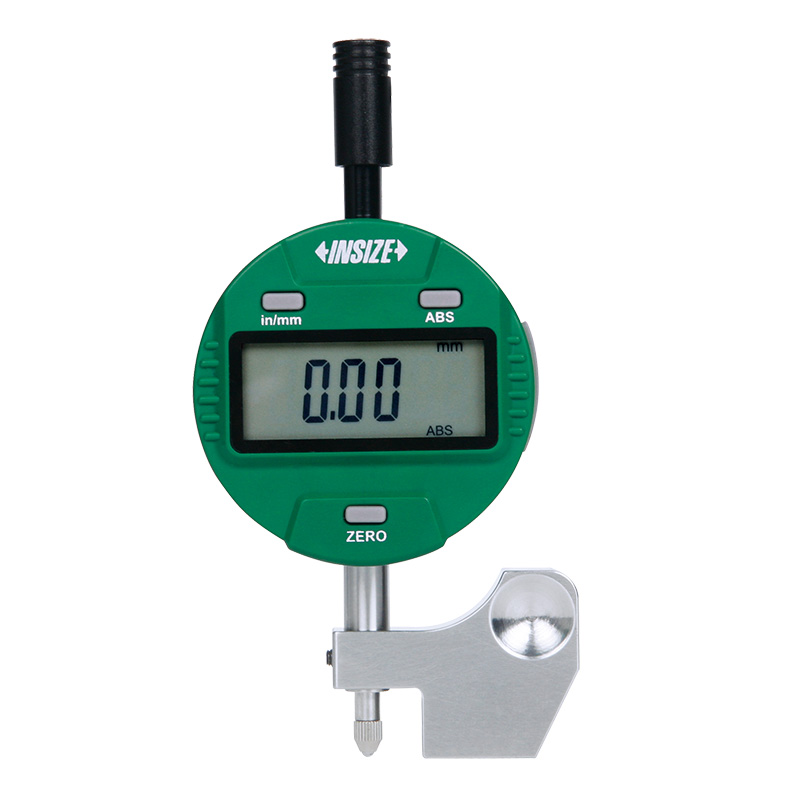

Digital Height Gauges
Code: 2146
Measure height difference of two surfaces
Button function: on/off, inch/mm, zero, data preset, changemeasuring direction, absolute/incremental measurement
Keep preset data in memory after restart
CR2032 battery, automatic power off (time is adjustable)
Data output
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2146-4A | 0~4mm/0~0.16" (sinked) 0~12.7mm/0~0.5" (raised) | ±0.02mm | 0.01mm/0.0005" |
| 2146-41A | 0~4mm/0~0.16" (sinked) 0~12.7mm/0~0.5" (raised) | ±0.005mm | 0.001mm/0.00005" |
| 2146-4B | 0~4mm/0~0.16" (sinked) 0~5mm/0~0.2" (raised) | ±0.02mm | 0.01mm/0.0005" |
| 2146-41B | 0~4mm/0~0.16" (sinked) 0~5mm/0~0.2" (raised) | ±0.005mm | 0.001mm/0.00005" |
