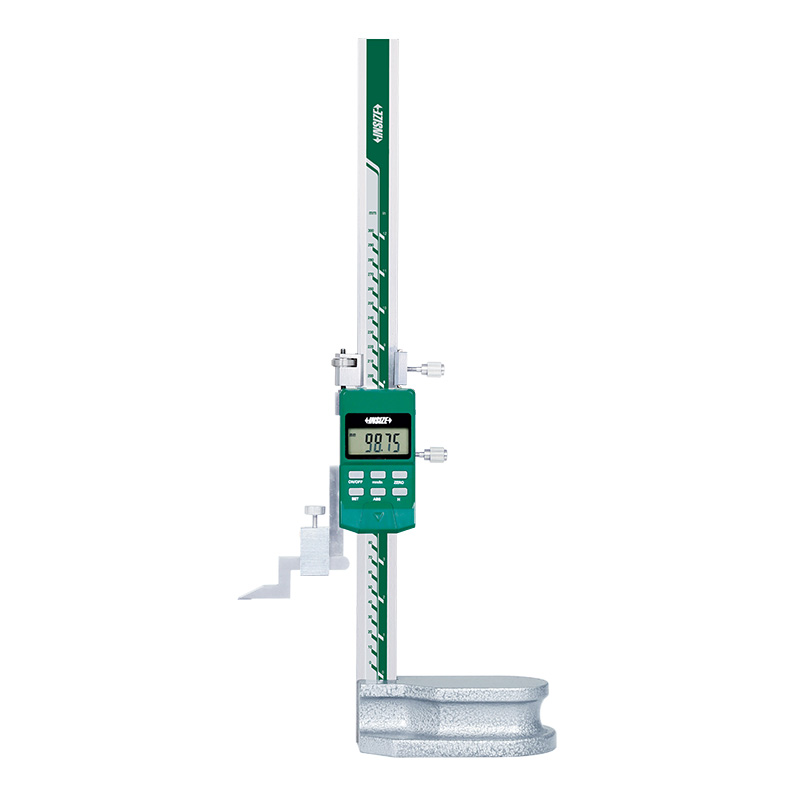

Digital Height Gauges
Code: 1150
Non waterproof
Buttons: on/off, zero, mm/inch, ABS/INC, data hold, TOL, set
ABS/INC is for absolute and incremental measurement
TOL is for tolerance measurement
Carbide tipped scriber
Made of stainless steel (except the base)
LR44 battery, data output
Supplied with dial test indicator holder
Supplied with dust cover (except 1150-1500/2000)
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 1150-300 | 0-300mm/0-12" | ±0.04mm | 0.01mm/0.0005" |
| 1150-500 | 0-500mm/0-20" | ±0.06mm | 0.01mm/0.0005" |
| 1150-600 | 0-600mm/0-24" | ±0.06mm | 0.01mm/0.0005" |
| 1150-1000 | 0-1000mm/0-40" | ±0.08mm | 0.01mm/0.0005" |
| 1150-1500 | 0-1500mm/0-60" | ±0.12mm | 0.01mm/0.0005" |
| 1150-2000 | 0-2000mm/0-80" | ±0.16mm | 0.01mm/0.0005" |
