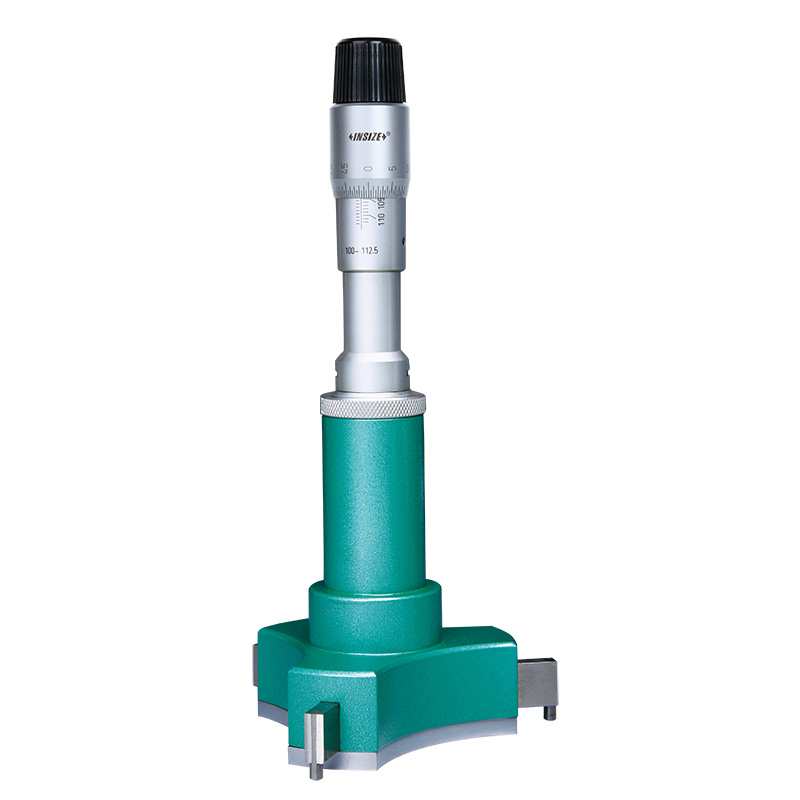

Two Points/Three Points Internal Micrometers
Code: 3227
Meet DIN863-4
2-12mm: graduation 0.001mm,12-300mm: graduation 0.005mm
Ratchet stop
Optional accessory: setting rings (code 6312),micrometer stand and clamp (code 6301 and 6301-2)
Specification
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 3227-2 | 2-2.5mm | 6μm | 0.001mm |
| 3227-3 | 2.5-3mm | 6μm | 0.001mm |
| 3227-4 | 3-4mm | 6μm | 0.001mm |
| 3227-5 | 4-5mm | 6μm | 0.001mm |
| 3227-6 | 5-6mm | 6μm | 0.001mm |
| 3227-8 | 6-8mm | 4μm | 0.001mm |
| 3227-10 | 8-10mm | 4μm | 0.001mm |
| 3227-12 | 10-12mm | 4μm | 0.001mm |
| 3227-16 | 12-16mm | 4μm | 0.005mm |
| 3227-20 | 16-20mm | 4μm | 0.005mm |
| 3227-25 | 20-25mm | 4μm | 0.005mm |
| 3227-30 | 25-30mm | 4μm | 0.005mm |
| 3227-40 | 30-40mm | 4μm | 0.005mm |
| 3227-50 | 40-50mm | 5μm | 0.005mm |
| 3227-63 | 50-63mm | 5μm | 0.005mm |
| 3227-75 | 62-75mm | 5μm | 0.005mm |
| 3227-88 | 75-88mm | 5μm | 0.005mm |
| 3227-100 | 87-100mm | 5μm | 0.005mm |
| 3227-125 | 100-125mm | 6μm | 0.005mm |
| 3227-150 | 125-150mm | 6μm | 0.005mm |
| 3227-175 | 150-175mm | 7μm | 0.005mm |
| 3227-200 | 175-200mm | 7μm | 0.005mm |
| 3227-225 | 200-225mm | 8μm | 0.005mm |
| 3227-250 | 225-250mm | 8μm | 0.005mm |
| 3227-275 | 250-275mm | 9μm | 0.005mm |
| 3227-300 | 275-300mm | 9μm | 0.005mm |
| 3227-232 | 2-3mm | 6μm | 0.001mm |
| 3227-363 | 3-6mm | 6μm | 0.001mm |
| 3227-123 | 6-12mm | 4μm | 0.001mm |
| 3227-202 | 12-20mm | 4μm | 0.005mm |
| 3227-504 | 20-50mm | 4-5μm | 0.005mm |
| 3227-1004 | 50-100mm | 5μm | 0.005mm |
