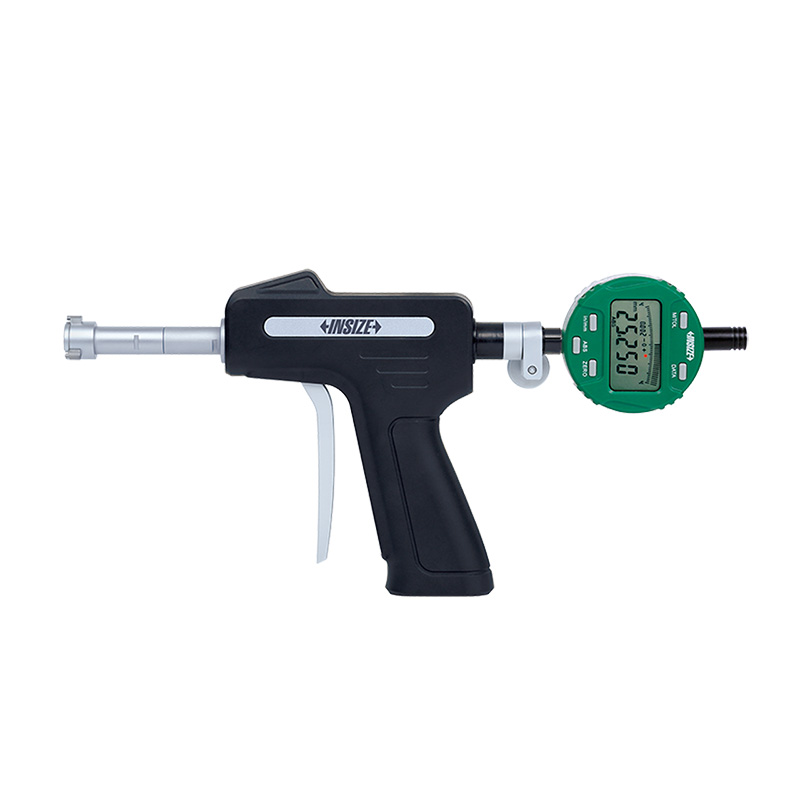

Pistol Grip Three Points Bore Gauges
Code: 2124
Optional accessory: digital indicators (code 2103-101F, resolution 0.001mm/0.00005"), setting rings (code 6312)
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2124-8 | 6-8mm | 4μm | 0.001mm/0.00005" |
| 2124-10 | 8-10mm | 4μm | 0.001mm/0.00005" |
| 2124-12 | 10-12mm | 4μm | 0.001mm/0.00005" |
| 2124-16 | 12-16mm | 4μm | 0.001mm/0.00005" |
| 2124-20 | 16-20mm | 4μm | 0.001mm/0.00005" |
| 2124-25 | 20-25mm | 4μm | 0.001mm/0.00005" |
| 2124-30 | 25-30mm | 4μm | 0.001mm/0.00005" |
| 2124-40 | 30-40mm | 4μm | 0.001mm/0.00005" |
| 2124-50 | 40-50mm | 5μm | 0.001mm/0.00005" |
| 2124-63 | 50-63mm | 5μm | 0.001mm/0.00005" |
| 2124-75 | 62-75mm | 5μm | 0.001mm/0.00005" |
| 2124-88 | 75-88mm | 5μm | 0.001mm/0.00005" |
| 2124-100 | 87-100mm | 5μm | 0.001mm/0.00005" |
| 2124-125 | 100-125mm | 6μm | 0.001mm/0.00005" |
| 2124-150 | 125-150mm | 6μm | 0.001mm/0.00005" |
| 2124-175 | 150-175mm | 7μm | 0.001mm/0.00005" |
| 2124-200 | 175-200mm | 7μm | 0.001mm/0.00005" |
| 2124-225 | 200-225mm | 8μm | 0.001mm/0.00005" |
| 2124-250 | 225-250mm | 8μm | 0.001mm/0.00005" |
| 2124-275 | 250-275mm | 9μm | 0.001mm/0.00005" |
| 2124-300 | 275-300mm | 9μm | 0.001mm/0.00005" |
| 2124-S123 | 6-12mm | 4μm | 0.001mm/0.00005" |
| 2124-S202 | 12-20mm | 4μm | 0.001mm/0.00005" |
| 2124-S504 | 20-50mm | 4-5μm | 0.001mm/0.00005" |
| 2124-S1004 | 50-100mm | 5μm | 0.001mm/0.00005" |
