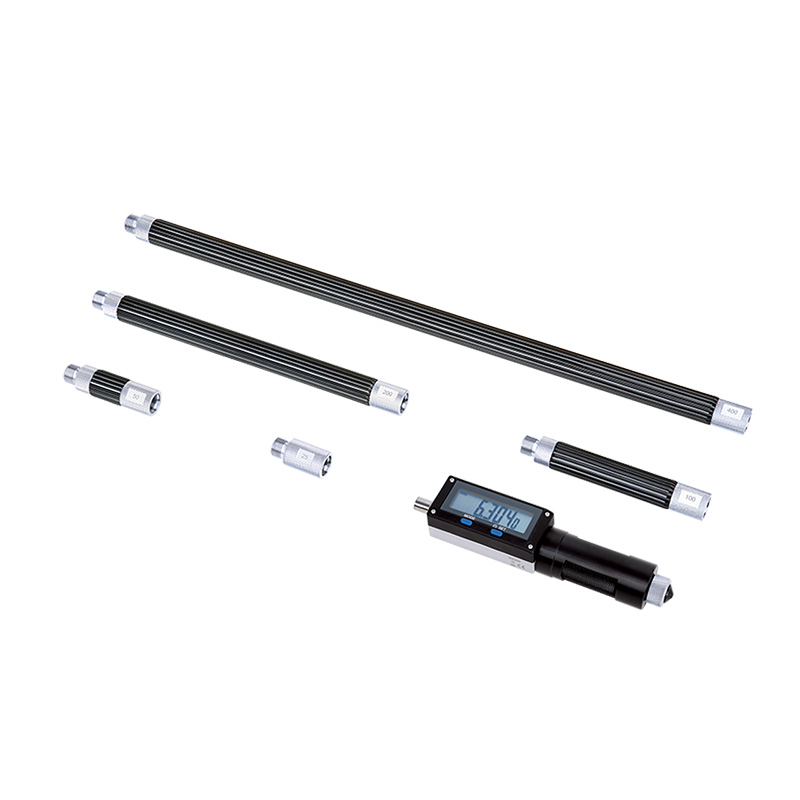

Digital Non-Rotating Spindle Inside Micrometers
Code: 3635
Carbide measuring faces for micrometer head and extension rods
Points of extension rods are spring loaded
Data output
Button function: mm/inch, max./min. value tracking, preset value,
hold, on/off, zero
CR2032 battery, automatic power off, turn the sleeve to turn on
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 3635-350 | 150-350mm/6-14" | ±4µm | 0.001mm/0.00005" |
| 3635-550 | 150-550mm/6-22" | ±4µm | 0.001mm/0.00005" |
| 3635-950 | 150-950mm/6-38" | ±4µm | 0.001mm/0.00005" |
| 3635-1550 | 150-1550mm/6-62" | ±4µm | 0.001mm/0.00005" |
| 3635-2150 | 150-2150mm/6-86" | ±4µm | 0.001mm/0.00005" |
| 3635-3150 | 150-3150mm/6-126" | ±4µm | 0.001mm/0.00005" |
| 3635-4150 | 150-4150mm/6-166" | ±4µm | 0.001mm/0.00005" |
| 3635-5150 | 150-5150mm/6-206" | ±4µm | 0.001mm/0.00005" |
| 3635-6150 | 150-6150mm/6-246" | ±4µm | 0.001mm/0.00005" |
