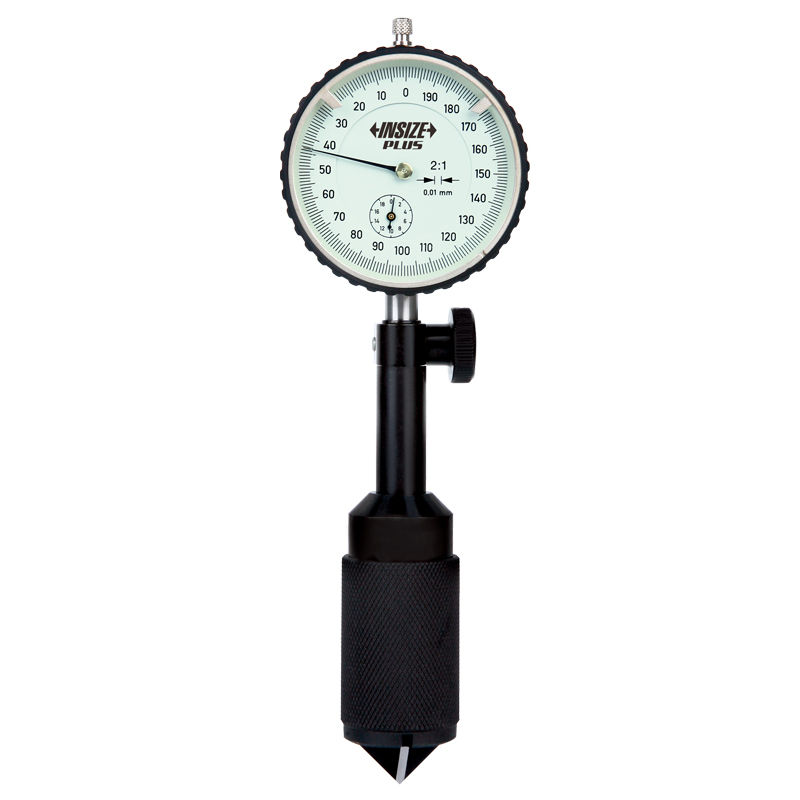

Internal Chamfer Gauges
Code: 2941
Measure end diameter of chamfer or taper holes
With limit pointers
2941-20 and 2941-203 are supplied with 5mm setting ring
Specification
| Code | Range | Accuracy | Applicable angle α |
|---|---|---|---|
| 2941-20 | 0.5-20.1mm | ±0.02mm | 0-90° |
| 2941-40 | 20-40mm | ±0.02mm | 0-90° |
| 2941-203 | 0.5-20.1mm | ±0.04mm | 90-127° |
| 2941-403 | 20-40mm | ±0.04mm | 90-127° |
