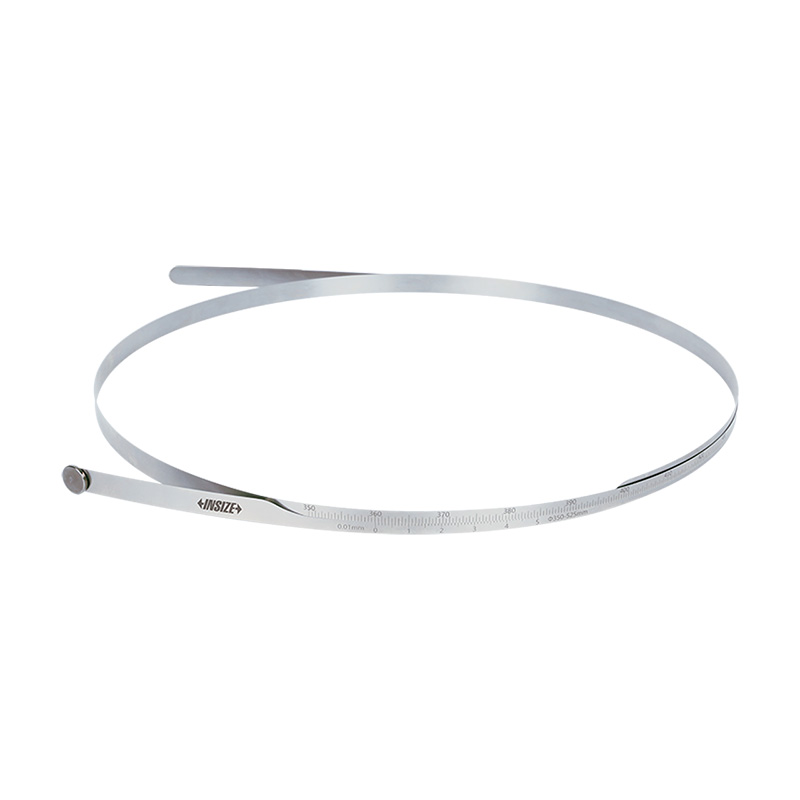

Diameter Meters
Code: 7135
Measure diameter of pipes, trees, tires, etc.
Made of stainless steel
Specification
| Code | Accuracy | Graduation | Diameter range |
|---|---|---|---|
| 7135-35 | ±0.05mm | 0.05mm | Ø20-35mm |
| 7135-55 | ±0.05mm | 0.05mm | Ø30-55mm |
| 7135-125 | ±0.05mm | 0.01mm | Ø50-125mm |
| 7135-225 | ±0.05mm | 0.01mm | Ø100-225mm |
| 7135-375 | ±0.05mm | 0.01mm | Ø200-375mm |
| 7135-525 | ±0.05mm | 0.01mm | Ø350-525mm |
| 7135-725 | ±0.06mm | 0.01mm | Ø500-725mm |
| 7135-925 | ±0.06mm | 0.01mm | Ø700-925mm |
| 7135-1125 | ±0.06mm | 0.02mm | Ø900-1125mm |
| 7135-1325 | ±0.08mm | 0.02mm | Ø1100-1325mm |
| 7135-1525 | ±0.08mm | 0.02mm | Ø1300-1525mm |
| 7135-1725 | ±0.08mm | 0.02mm | Ø1500-1725mm |
| 7135-1925 | ±0.08mm | 0.02mm | Ø1700-1925mm |
| 7135-2125 | ±0.08mm | 0.02mm | Ø1900-2125mm |
| 7135-2325 | ±0.10mm | 0.02mm | Ø2100-2325mm |
| 7135-2525 | ±0.10mm | 0.02mm | Ø2300-2525mm |
| 7135-2750 | ±0.10mm | 0.02mm | Ø2500-2750mm |
| 7135-3000 | ±0.10mm | 0.02mm | Ø2750-3000mm |
| 7135-3250 | ±0.15mm | 0.02mm | Ø3000-3250mm |
| 7135-3500 | ±0.15mm | 0.02mm | Ø3250-3500mm |
| 7135-3750 | ±0.15mm | 0.02mm | Ø3500-3750mm |
| 7135-4000 | ±0.20mm | 0.02mm | Ø3750-4000mm |
| 7135-4250 | ±0.20mm | 0.02mm | Ø4000-4250mm |
| 7135-4500 | ±0.20mm | 0.02mm | Ø4250-4500mm |
| 7135-4750 | ±0.20mm | 0.02mm | Ø4500-4750mm |
| 7135-5000 | ±0.20mm | 0.02mm | Ø4750-5000mm |
| 7135-5250 | ±0.005%L | 0.02mm | Ø5000-5250mm |
| 7135-5500 | ±0.005%L | 0.02mm | Ø5250-5500mm |
| 7135-5750 | ±0.005%L | 0.02mm | Ø5500-5750mm |
| 7135-6000 | ±0.005%L | 0.02mm | Ø5750-6000mm |
| 7135-6250 | ±0.005%L | 0.02mm | Ø6000-6250mm |
| 7135-6500 | ±0.005%L | 0.02mm | Ø6250-6500mm |
| 7135-6750 | ±0.005%L | 0.02mm | Ø6500-6750mm |
| 7135-7000 | ±0.005%L | 0.02mm | Ø6750-7000mm |
| 7135-7250 | ±0.005%L | 0.02mm | Ø7000-7250mm |
| 7135-7500 | ±0.005%L | 0.02mm | Ø7250-7500mm |
| 7135-7750 | ±0.005%L | 0.02mm | Ø7500-7750mm |
| 7135-8000 | ±0.005%L | 0.02mm | Ø7750-8000mm |
| 7135-8250 | ±0.005%L | 0.02mm | Ø8000-8250mm |
| 7135-80 | ±0.05mm | 0.05mm | Ø9-80mm |
| 7135-55B | ±0.05mm | 0.02mm | Ø15-55mm |
| 7135-300 | ±0.05mm | 0.01mm | Ø50-300mm |
| 7135-600 | ±0.05mm | 0.01mm | Ø300-600mm |
| 7135-900 | ±0.06mm | 0.01mm | Ø600-900mm |
| 7135-1200 | ±0.08mm | 0.02mm | Ø900-1200mm |
| 7135-1500 | ±0.08mm | 0.02mm | Ø1200-1500mm |
| 7135-1800 | ±0.08mm | 0.02mm | Ø1500-1800mm |
| 7135-2100 | ±0.08mm | 0.02mm | Ø1800-2100mm |
| 7135-2400 | ±0.10mm | 0.02mm | Ø2100-2400mm |
| 7135-2700 | ±0.10mm | 0.02mm | Ø2400-2700mm |
| 7135-3000B | ±0.10mm | 0.02mm | Ø2700-3000mm |
| 7135-3300 | ±0.15mm | 0.02mm | Ø3000-3300mm |
| 7135-3600 | ±0.15mm | 0.02mm | Ø3300-3600mm |
| 7135-3900 | ±0.20mm | 0.02mm | Ø3600-3900mm |
| 7135-4200 | ±0.20mm | 0.02mm | Ø3900-4200mm |
| 7135-4500B | ±0.20mm | 0.02mm | Ø4200-4500mm |
| 7135-4800 | ±0.20mm | 0.02mm | Ø4500-4800mm |
| 7135-5100 | ±0.005%L | 0.02mm | Ø4800-5100mm |
| 7135-5400 | ±0.005%L | 0.02mm | Ø5100-5400mm |
| 7135-5700 | ±0.005%L | 0.02mm | Ø5400-5700mm |
| 7135-6000B | ±0.005%L | 0.02mm | Ø5700-6000mm |
| 7135-6300 | ±0.005%L | 0.02mm | Ø6000-6300mm |
| 7135-6600 | ±0.005%L | 0.02mm | Ø6300-6600mm |
| 7135-6900 | ±0.005%L | 0.02mm | Ø6600-6900mm |
| 7135-7200 | ±0.005%L | 0.02mm | Ø6900-7200mm |
| 7135-7500B | ±0.005%L | 0.02mm | Ø7200-7500mm |
| 7135-7800 | ±0.005%L | 0.02mm | Ø7500-7800mm |
| 7135-8100 | ±0.005%L | 0.02mm | Ø7800-8100mm |
| 7135-8400 | ±0.005%L | 0.02mm | Ø8100-8400mm |
| 7135-8700 | ±0.005%L | 0.02mm | Ø8400-8700mm |
| 7135-9000 | ±0.005%L | 0.02mm | Ø8700-9000mm |
| 7135-9300 | ±0.005%L | 0.02mm | Ø9000-9300mm |
