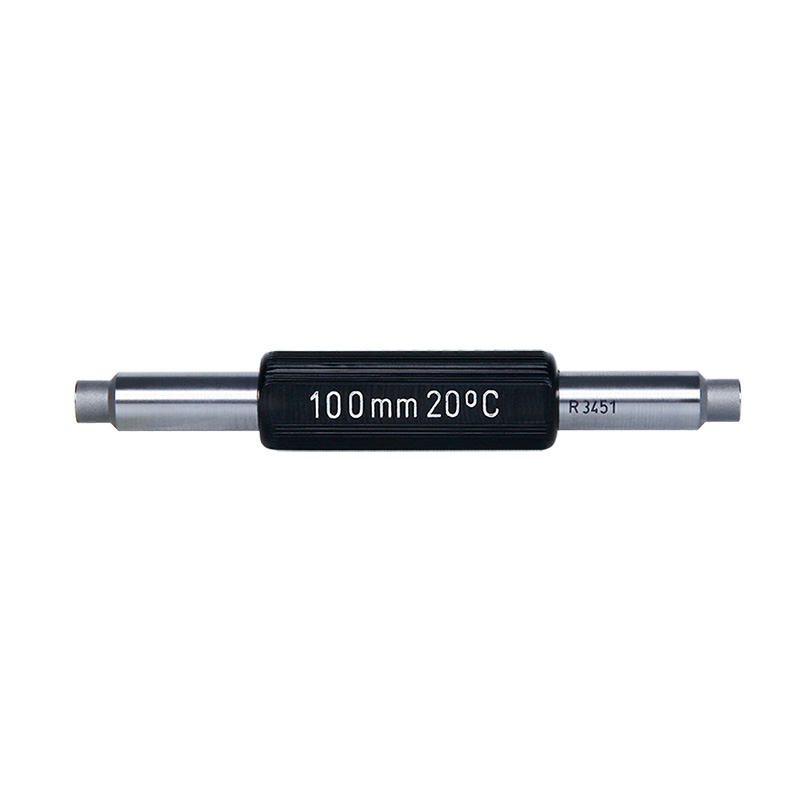

Micrometer Setting Standards
Code: 7386
Suitable for outside micrometers
Specification
| Code | Accuracy | Length (L) |
|---|---|---|
| 7386-25 | ±1.25μm | 25mm |
| 7386-50 | ±1.25μm | 50mm |
| 7386-75 | ±1.5μm | 75mm |
| 7386-100 | ±2μm | 100mm |
| 7386-125 | ±2.5μm | 125mm |
| 7386-150 | ±2.5μm | 150mm |
| 7386-175 | ±2.5μm | 175mm |
| 7386-200 | ±3μm | 200mm |
| 7386-225 | ±3μm | 225mm |
| 7386-250 | ±3μm | 250mm |
| 7386-275 | ±3μm | 275mm |
| 7386-300 | ±3μm | 300mm |
| 7386-325 | ±3.5μm | 325mm |
| 7386-350 | ±3.5μm | 350mm |
| 7386-375 | ±3.5μm | 375mm |
| 7386-400 | ±3.5μm | 400mm |
| 7386-425 | ±3.5μm | 425mm |
| 7386-450 | ±3.5μm | 450mm |
| 7386-475 | ±3.5μm | 475mm |
| 7386-500 | ±3.5μm | 500mm |
| 7386-525 | ±3.5μm | 525mm |
| 7386-550 | ±3.5μm | 550mm |
| 7386-575 | ±3.5μm | 575mm |
| 7386-600 | ±3.5μm | 600mm |
| 7386-625 | ±4μm | 625mm |
| 7386-650 | ±4μm | 650mm |
| 7386-675 | ±4μm | 675mm |
| 7386-700 | ±4μm | 700mm |
| 7386-725 | ±4μm | 725mm |
| 7386-750 | ±4μm | 750mm |
| 7386-775 | ±4μm | 775mm |
| 7386-800 | ±4μm | 800mm |
| 7386-825 | ±4μm | 825mm |
| 7386-850 | ±4μm | 850mm |
| 7386-875 | ±4μm | 875mm |
| 7386-900 | ±5μm | 900mm |
| 7386-925 | ±5μm | 925mm |
| 7386-950 | ±5μm | 950mm |
| 7386-975 | ±5μm | 975mm |
| 7386-1000 | ±5μm | 1000mm |
| 7386-1050 | ±5μm | 1050mm |
| 7386-1150 | ±6μm | 1150mm |
| 7386-1250 | ±7μm | 1250mm |
| 7386-1350 | ±7μm | 1350mm |
| 7386-1450 | ±7μm | 1450mm |
| 7386-1550 | ±9μm | 1550mm |
| 7386-1650 | ±10μm | 1650mm |
| 7386-1750 | ±10μm | 1750mm |
| 7386-1850 | ±11μm | 1850mm |
| 7386-1950 | ±12μm | 1950mm |
