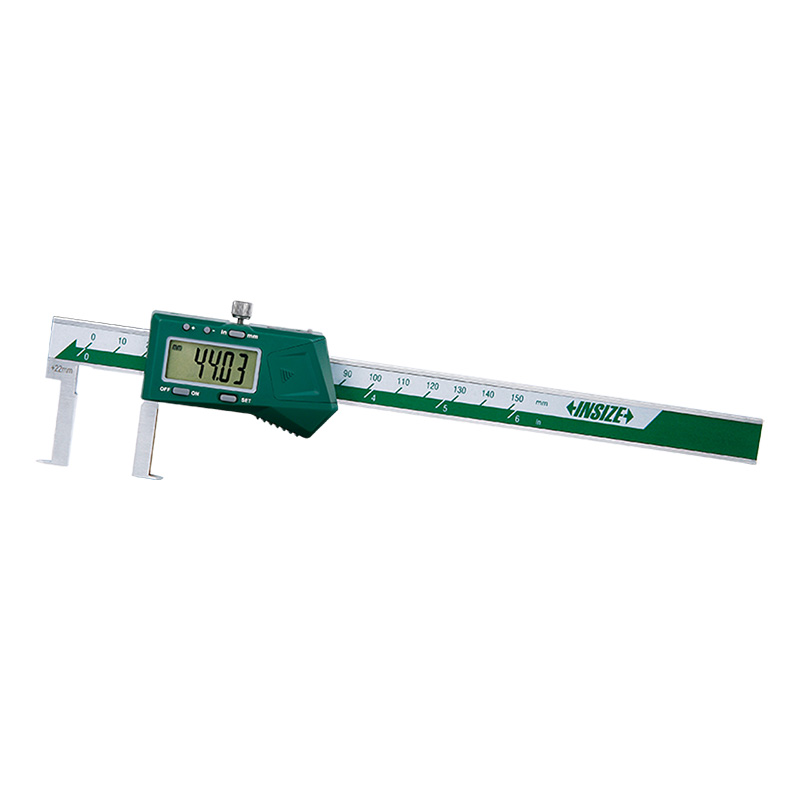

Digital Inside Groove Calipers
Code: 1120
Measure groove diameter
Buttons type A: on/off, set, mm/inch, preset (+, -) type B: on/off, zero, mm/inch type C: on/off, zero, mm/inch, ABS/REL, hold
Battery CR2032
Made of stainless steel
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 1120-150A | 22-150mm/0.87-6" | ±0.04mm | 0.01mm/0.0005" |
| 1120-1501 | 35-150mm/1.38-6" | ±0.06mm | 0.01mm/0.0005" |
| 1120-200A | 25-200mm/0.98-8" | ±0.04mm | 0.01mm/0.0005" |
| 1120-2001 | 40-200mm/1.57-8" | ±0.06mm | 0.01mm/0.0005" |
| 1120-300A | 30-300mm/1.18-12" | ±0.05mm | 0.01mm/0.0005" |
| 1120-3001 | 50-300mm/1.97-12" | ±0.07mm | 0.01mm/0.0005" |
| 1120-500 | 40-500mm/1.57-20" | ±0.07mm | 0.01mm/0.0005" |
| 1120-5001 | 60-500mm/2.36-20" | ±0.08mm | 0.01mm/0.0005" |
| 1120-5002 | 80-500mm/3.15-20" | ±0.08mm | 0.01mm/0.0005" |
| 1120-150AWL | 22-150mm/0.87-6" | ±0.04mm | 0.01mm/0.0005" |
| 1120-1501WL | 35-150mm/1.38-6" | ±0.06mm | 0.01mm/0.0005" |
| 1120-200AWL | 25-200mm/0.98-8" | ±0.04mm | 0.01mm/0.0005" |
| 1120-2001WL | 40-200mm/1.57-8" | ±0.06mm | 0.01mm/0.0005" |
| 1120-300AWL | 30-300mm/1.18-12" | ±0.05mm | 0.01mm/0.0005" |
| 1120-3001WL | 50-300mm/1.97-12" | ±0.07mm | 0.01mm/0.0005" |
| 1120-500WL | 40-500mm/1.57-20" | ±0.07mm | 0.01mm/0.0005" |
| 1120-5001WL | 60-500mm/2.36-20" | ±0.08mm | 0.01mm/0.0005" |
| 1120-5002WL | 80-500mm/3.15-20" | ±0.08mm | 0.01mm/0.0005" |
| 1120-150B | 50-150mm/1.97-6" | ±0.06mm | 0.01mm/0.0005" |
| 1120-200B | 60-200mm/2.36-8" | ±0.06mm | 0.01mm/0.0005" |
| 1120-300B | 60-300mm/2.36-12" | ±0.07mm | 0.01mm/0.0005" |
| 1120-150P | 22-150mm/0.87-6" | ±0.04mm | 0.01mm/0.0005" |
