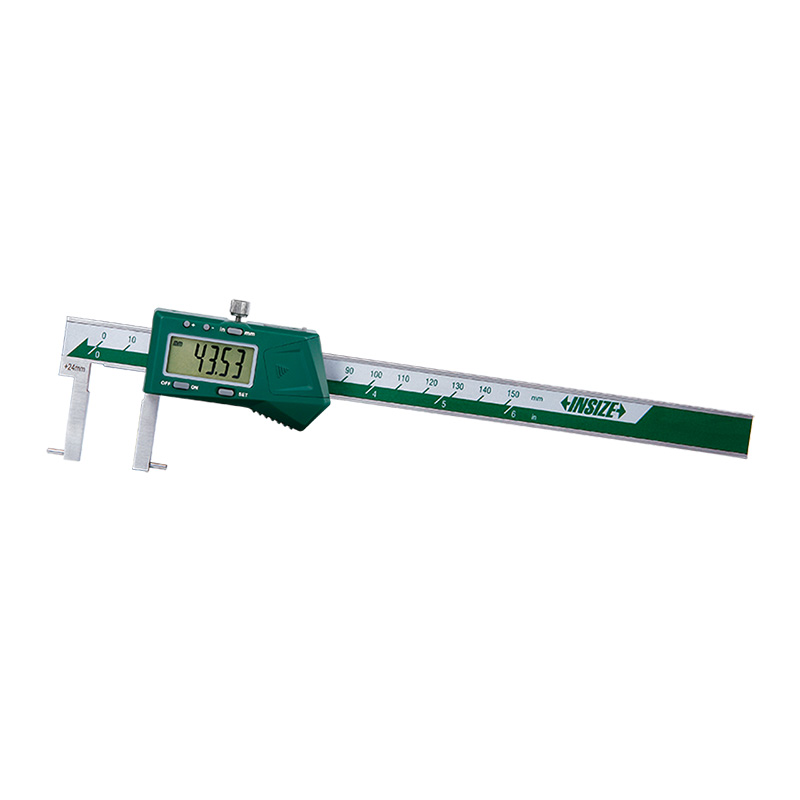

Digital Inside Point Calipers
Code: 1121
Non waterproof
Measure groove diameter
Buttons type A: on/off, set, mm/inch, preset (+, -) type B: on/off, zero, mm/inch
Automatic power off, move the digital unit to turn on power
Battery CR2032
Data output
Made of stainless steel
Optional accessory: depth stop (code 6143, for calipers with c=16mm)
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 1121-150A | 24-150mm/0.94-6" | ±0.04mm | 0.01mm/0.0005" |
| 1121-1501 | 35-150mm/1.38-6" | ±0.05mm | 0.01mm/0.0005" |
| 1121-200A | 25-200mm/0.98-8" | ±0.04mm | 0.01mm/0.0005" |
| 1121-2001 | 40-200mm/1.57-8" | ±0.05mm | 0.01mm/0.0005" |
| 1121-300A | 30-300mm/1.18-12" | ±0.07mm | 0.01mm/0.0005" |
| 1121-3001A | 50-300mm/1.97-12" | ±0.07mm | 0.01mm/0.0005" |
| 1121-500A | 40-500mm/1.57-20" | ±0.07mm | 0.01mm/0.0005" |
| 1121-5001 | 60-500mm/2.36-20" | ±0.08mm | 0.01mm/0.0005" |
| 1121-5002 | 80-500mm/3.15-20" | ±0.08mm | 0.01mm/0.0005" |
| 1121-150AWL | 24-150mm/0.94-6" | ±0.04mm | 0.01mm/0.0005" |
| 1121-1501WL | 35-150mm/1.38-6" | ±0.05mm | 0.01mm/0.0005" |
| 1121-200AWL | 25-200mm/0.98-8" | ±0.04mm | 0.01mm/0.0005" |
| 1121-2001WL | 40-200mm/1.57-8" | ±0.05mm | 0.01mm/0.0005" |
| 1121-300AWL | 30-300mm/1.18-12" | ±0.07mm | 0.01mm/0.0005" |
| 1121-3001AWL | 50-300mm/1.97-12" | ±0.07mm | 0.01mm/0.0005" |
| 1121-500AWL | 40-500mm/1.57-20" | ±0.07mm | 0.01mm/0.0005" |
| 1121-5001WL | 60-500mm/2.36-20" | ±0.08mm | 0.01mm/0.0005" |
| 1121-5002WL | 80-500mm/3.15-20" | ±0.08mm | 0.01mm/0.0005" |
| 1121-150B | 50-150mm/1.97-6" | ±0.06mm | 0.01mm/0.0005" |
| 1121-200B | 60-200mm/2.36-8" | ±0.06mm | 0.01mm/0.0005" |
| 1121-300B | 60-300mm/2.36-12" | ±0.07mm | 0.01mm/0.0005" |
