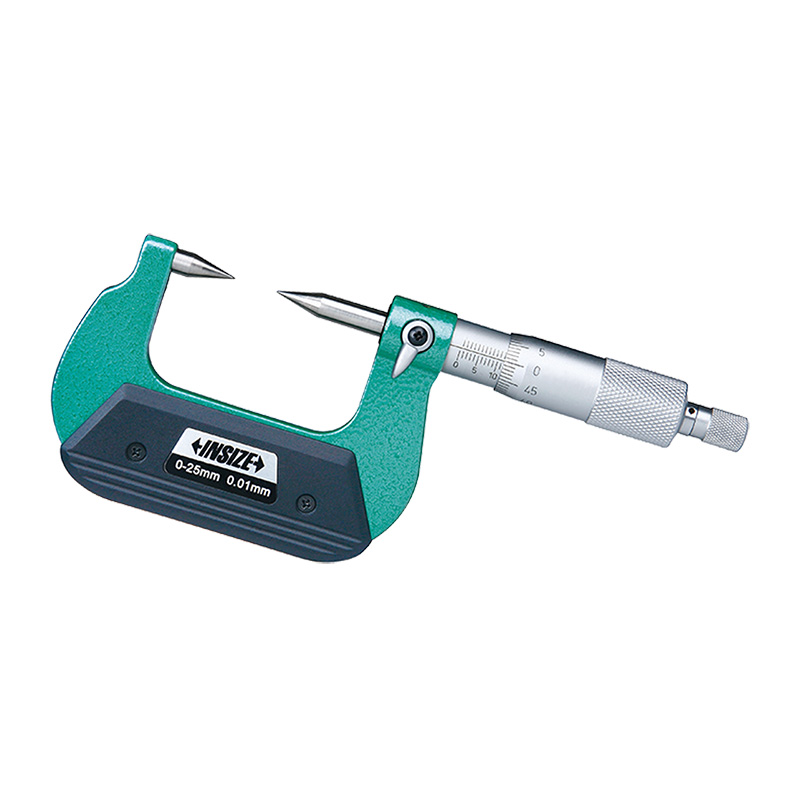

Point Micrometers
Code: 3230
Measure the web thickness of drills, small grooves and keyways
Ratchet stop
Carbide tips
Supplied with setting standards (except 0-25mm)
Specification
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 3230-25A | 0-25mm | 4μm | 0.01mm |
| 3230-50A | 25-50mm | 4μm | 0.01mm |
| 3230-75A | 50-75mm | 5μm | 0.01mm |
| 3230-100A | 75-100mm | 5μm | 0.01mm |
| 3230-25BA | 0-25mm | 4μm | 0.01mm |
| 3230-50BA | 25-50mm | 4μm | 0.01mm |
| 3230-75BA | 50-75mm | 5μm | 0.01mm |
| 3230-100BA | 75-100mm | 5μm | 0.01mm |
