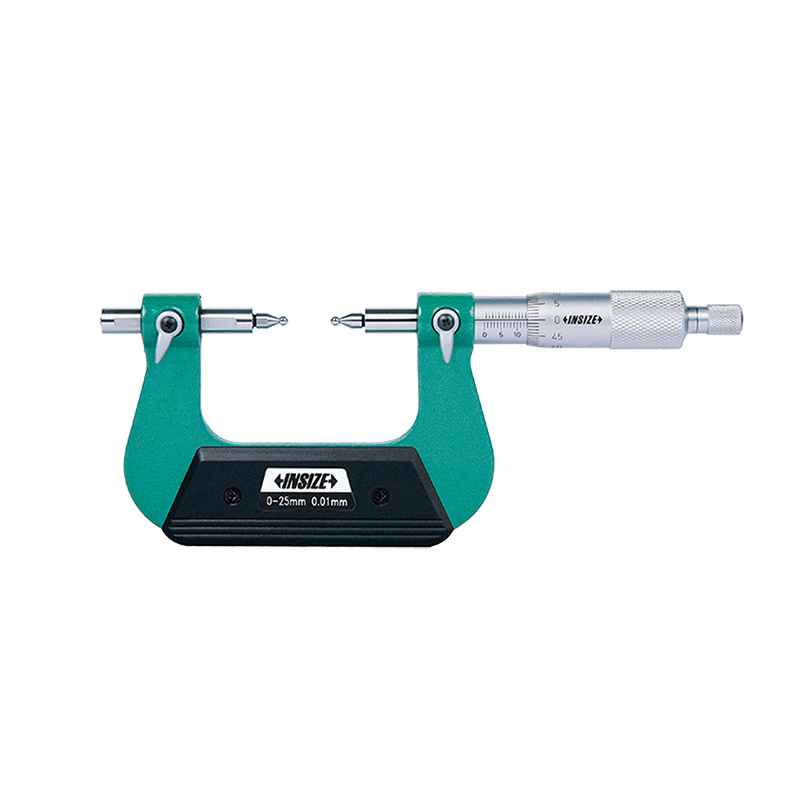

Gear Tooth Micrometers
Code: 3291
Meet DIN863-3
Measure over-pin diameter of gears
Ratchet stop
Supplied with setting standards (except 0-25mm)
Specification
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 3291-25 | 0-25mm | 4μm | 0.01mm |
| 3291-50 | 25-50mm | 4μm | 0.01mm |
| 3291-75 | 50-75mm | 5μm | 0.01mm |
| 3291-100 | 75-100mm | 5μm | 0.01mm |
| 3291-125 | 100-125mm | 6μm | 0.01mm |
| 3291-150 | 125-150mm | 6μm | 0.01mm |
| 3291-175 | 150-175mm | 7μm | 0.01mm |
| 3291-200 | 175-200mm | 7μm | 0.01mm |
| 3291-225 | 200-225mm | 8μm | 0.01mm |
| 3291-250 | 225-250mm | 8μm | 0.01mm |
| 3291-275 | 250-275mm | 9μm | 0.01mm |
