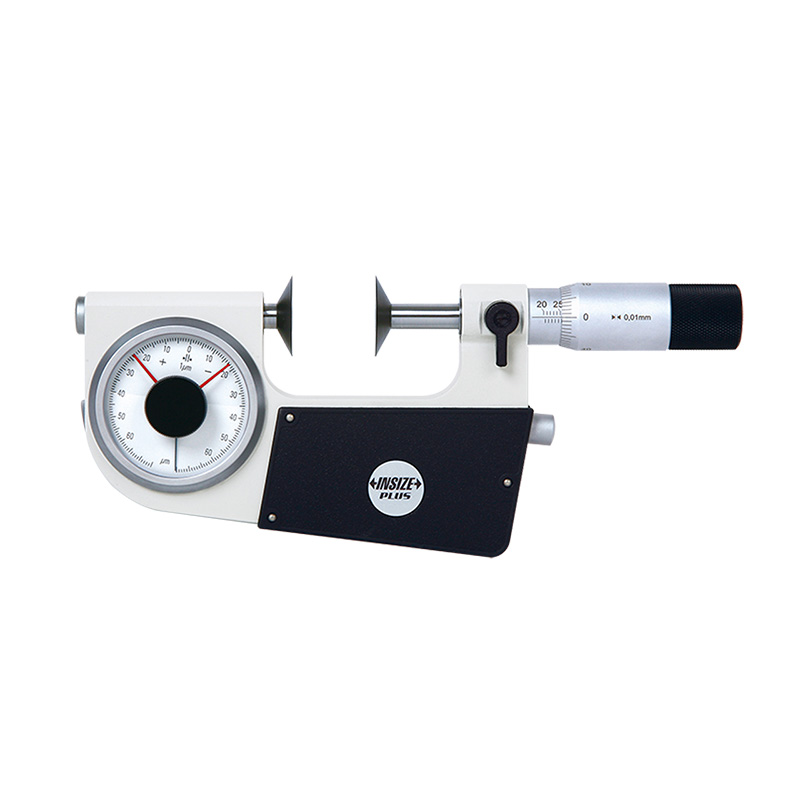

Disk Indicating Micrometers
Code: 3338
Meet DIN863-3
Suitable for measuring the common normal length of spur and helical gears
Carbide measuring faces
Measuring force 5-10N
Specification
| Code | Range | Graduation | Dial indicator range | Dial indicator graduation |
|---|---|---|---|---|
| 3338-201 | 0-20mm | 0.01mm | ±0.07mm | 1μm |
| 3338-20 | 0-20mm | 0.01mm | ±0.14mm | 2μm |
| 3338-451 | 20-45mm | 0.01mm | ±0.07mm | 1μm |
| 3338-45 | 20-45mm | 0.01mm | ±0.14mm | 2μm |
| 3338-701 | 45-70mm | 0.01mm | ±0.07mm | 1μm |
| 3338-70 | 45-70mm | 0.01mm | ±0.14mm | 2μm |
| 3338-951 | 70-95mm | 0.01mm | ±0.07mm | 1μm |
| 3338-95 | 70-95mm | 0.01mm | ±0.14mm | 2μm |
| 3338-120 | 95-120mm | 0.01mm | ±0.14mm | 2μm |
| 3338-145 | 120-145mm | 0.01mm | ±0.14mm | 2μm |
