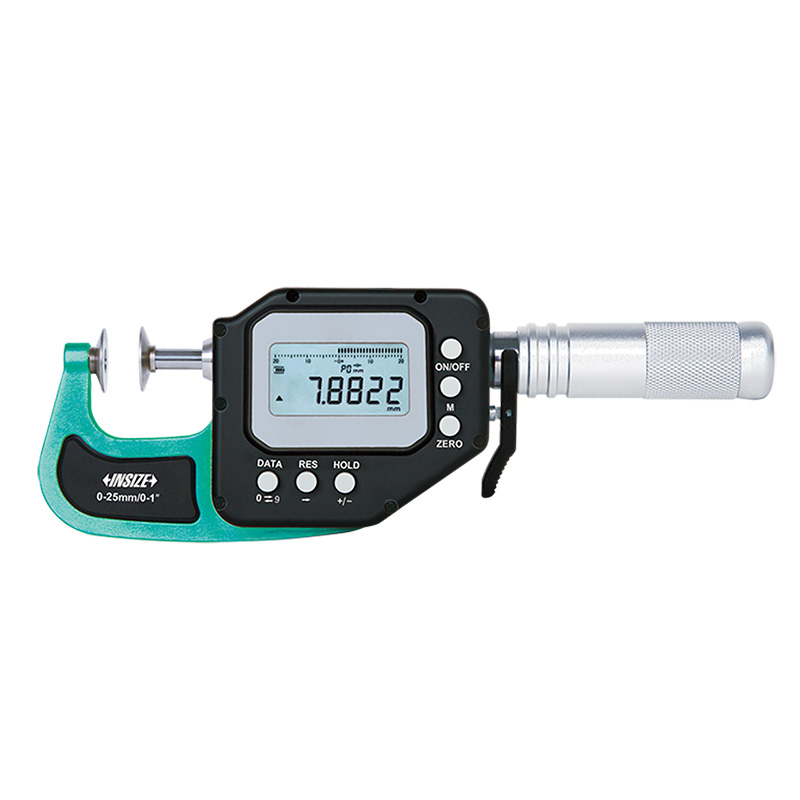

Digital Disk Micrometers/Snap Gauges
Code: 3353
Measure root tangent length of gear
Absolute encoder, the original data remains after power off
One turn of sleeve makes 5mm spindle feed
Measurement accuracy is not affected by the use of sleeve
Press the fork, the spindle retracts 3mm
Linear ball bearings for ten million times use
Carbide spindle and anvil
Specification
| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 3353-25 | 0-25mm/0-1" | 4μm | 0.0002mm/0.00001"， 0.001mm/0.00005"， 0.01mm/0.0005" | with data interface |
| 3353-50 | 25-50mm/1-2" | 4μm | 0.0002mm/0.00001"， 0.001mm/0.00005"， 0.01mm/0.0005" | with data interface |
| 3353-75 | 50-75mm/2-3" | 5μm | 0.0002mm/0.00001"， 0.001mm/0.00005"， 0.01mm/0.0005" | with data interface |
| 3353-100 | 75-100mm/3-3.95" | 5μm | 0.0002mm/0.00001"， 0.001mm/0.00005"， 0.01mm/0.0005" | with data interface |
| 3353-25AWL | 0-25mm/0-1" | 4μm | 0.0002mm/0.00001"， 0.001mm/0.00005"， 0.01mm/0.0005" | built-in wireless |
| 3353-50AWL | 25-50mm/1-2" | 4μm | 0.0002mm/0.00001"， 0.001mm/0.00005"， 0.01mm/0.0005" | built-in wireless |
| 3353-75AWL | 50-75mm/2-3" | 5μm | 0.0002mm/0.00001"， 0.001mm/0.00005"， 0.01mm/0.0005" | built-in wireless |
| 3353-100AWL | 75-100mm/3-3.95" | 5μm | 0.0002mm/0.00001"， 0.001mm/0.00005"， 0.01mm/0.0005" | built-in wireless |
