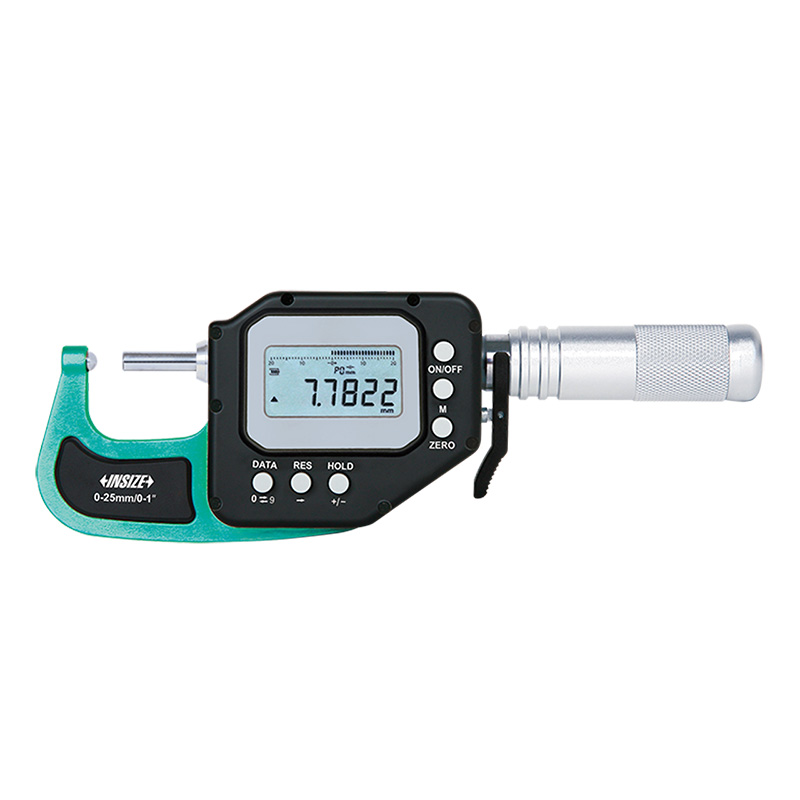

Digital Spherical Anvil Tube Micrometers/Snap Gauges
Code: 3355
Measure wall thickness of tubes
Absolute encoder, the original data remains after power off
One turn of sleeve makes 5mm spindle feed
Measurement accuracy is not affected by the use of sleeve
Press the fork, the spindle retracts 3mm
Linear ball bearings for ten million times use
Carbide spindle and anvil
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 3355-251 | 0-25mm/0-1" | 2μm | 0.001mm/0.00005" |
| 3355-501 | 25-50mm/1-2" | 2um | 0.001mm/0.00005" |
| 3355-751 | 50-75mm/2-3" | 3μm | 0.001mm/0.00005" |
| 3355-1001 | 75-100mm/3-3.95" | 3um | 0.001mm/0.00005" |
| 3355-251WL | 0-25mm/0-1" | 2μm | 0.001mm/0.00005" |
| 3355-501WL | 25-50mm/1-2" | 2um | 0.001mm/0.00005" |
| 3355-751WL | 50-75mm/2-3" | 3μm | 0.001mm/0.00005" |
| 3355-1001WL | 75-100mm/3-3.95" | 3um | 0.001mm/0.00005" |
