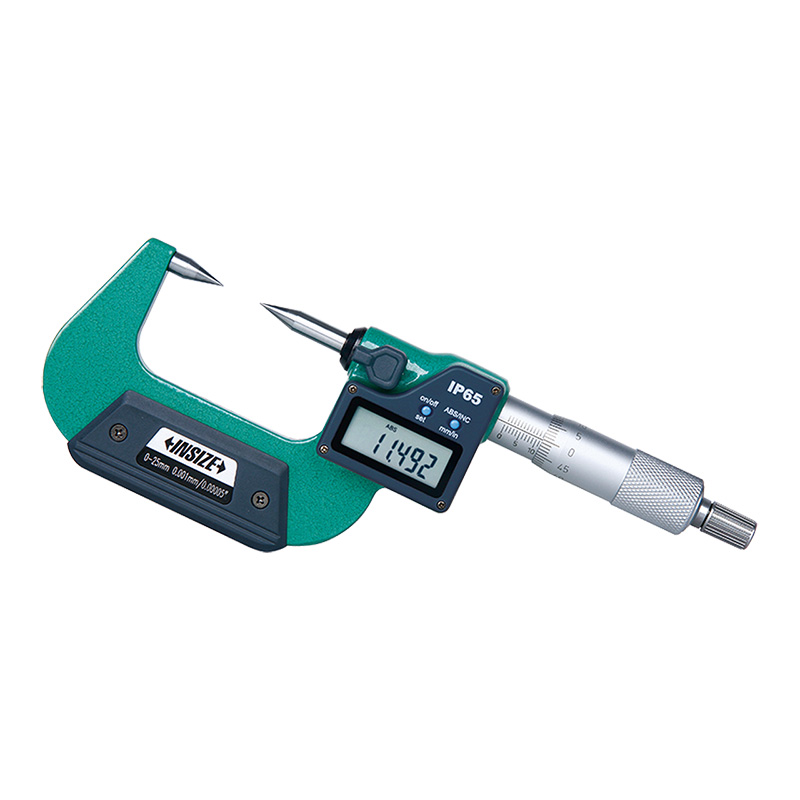

Digital Point Micrometers
Code: 3530
Measure the web thickness of drills, small grooves and keyways
IP65 dust/waterproof
Button function: on/off, set, mm/inch, data transmit
Data output
Automatic power off
Ratchet stop
Carbide tips
Supplied with setting standards (except 0-25mm/0-1")
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 3530-25A | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" |
| 3530-50A | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" |
| 3530-75A | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" |
| 3530-100A | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" |
| 3530-25BA | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" |
| 3530-50BA | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" |
| 3530-75BA | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" |
| 3530-100BA | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" |
