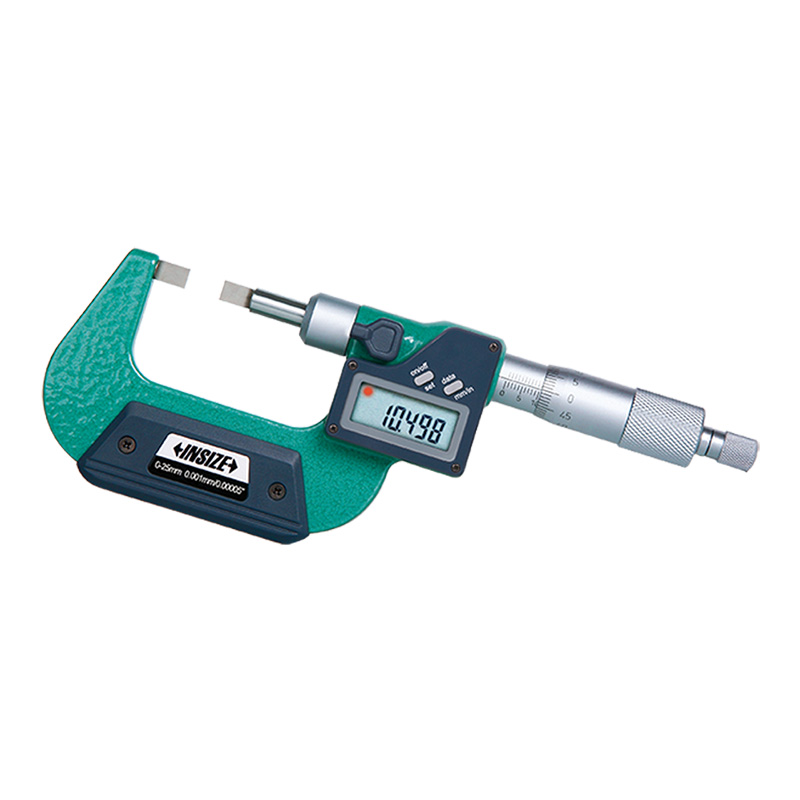

Digital Blade Micrometers
Code: 3532
Measure the groove diameter of shafts and keyways
Non-rotating spindle
Button function: on/off, set, mm/inch, data transmit
Data output
Automatic power off
Ratchet stop
Supplied with setting standards (except 0-25mm/0-1")
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 3532-25A | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" |
| 3532-50A | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" |
| 3532-75A | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" |
| 3532-100A | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" |
| 3532-125A | 100-125mm/4-5" | ±6μm | 0.001mm/0.00005" |
| 3532-150A | 125-150mm/5-6" | ±6μm | 0.001mm/0.00005" |
| 3532-175A | 150-175mm/6-7" | ±7μm | 0.001mm/0.00005" |
| 3532-200A | 175-200mm/7-8" | ±7μm | 0.001mm/0.00005" |
| 3532-225A | 200-225mm/8-9" | ±8μm | 0.001mm/0.00005" |
| 3532-250A | 225-250mm/9-10" | ±8μm | 0.001mm/0.00005" |
| 3532-275A | 250-275mm/10-11" | ±9μm | 0.001mm/0.00005" |
| 3532-300A | 275-300mm/10-12" | ±9μm | 0.001mm/0.00005" |
| 3532-25BA | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" |
| 3532-50BA | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" |
| 3532-75BA | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" |
| 3532-100BA | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" |
| 3532-125BA | 100-125mm/4-5" | ±6μm | 0.001mm/0.00005" |
| 3532-150BA | 125-150mm/5-6" | ±6μm | 0.001mm/0.00005" |
| 3532-175BA | 150-175mm/6-7" | ±7μm | 0.001mm/0.00005" |
| 3532-200BA | 175-200mm/7-8" | ±7μm | 0.001mm/0.00005" |
| 3532-225BA | 200-225mm/8-9" | ±8μm | 0.001mm/0.00005" |
| 3532-250BA | 225-250mm/9-10" | ±8μm | 0.001mm/0.00005" |
| 3532-275BA | 250-275mm/10-11" | ±9μm | 0.001mm/0.00005" |
| 3532-300BA | 275-300mm/10-12" | ±9μm | 0.001mm/0.00005" |
