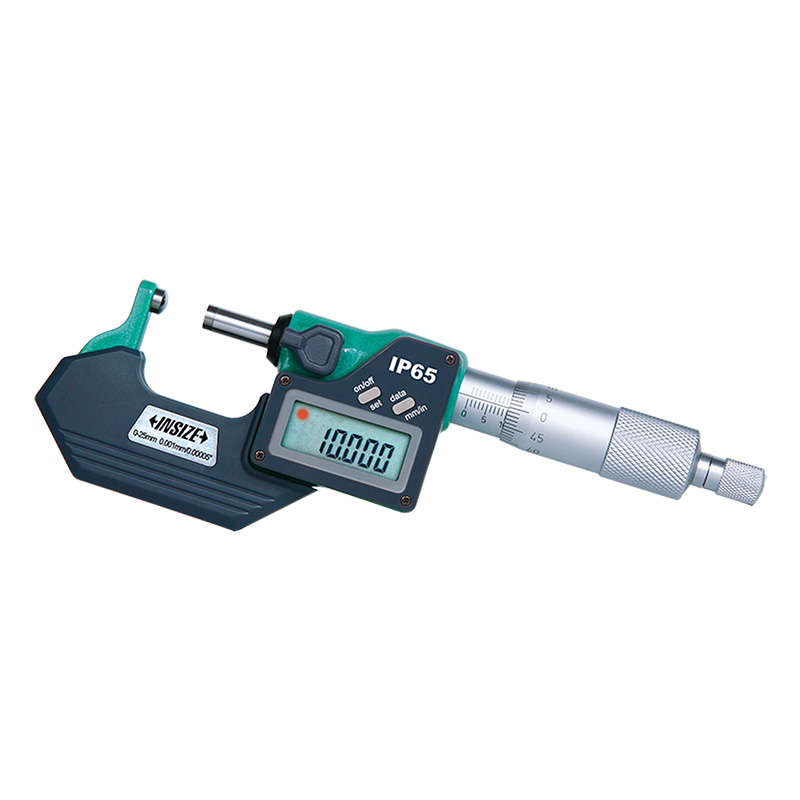

Digital Spherical Anvil Tube Micrometers
Code: 3560
Measure wall thickness of tubes
IP65 dust/waterproof
Button function: on/off, set, mm/inch, data transmit
Data output
Automatic power off
Ratchet stop
Carbide measuring faces
Supplied with setting standards (except 0-25mm/0-1")
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 3560-25A | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" |
| 3560-50A | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" |
| 3560-75A | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" |
| 3560-100A | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" |
| 3560-25SA | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" |
| 3560-50SA | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" |
| 3560-75SA | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" |
| 3560-100SA | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" |
