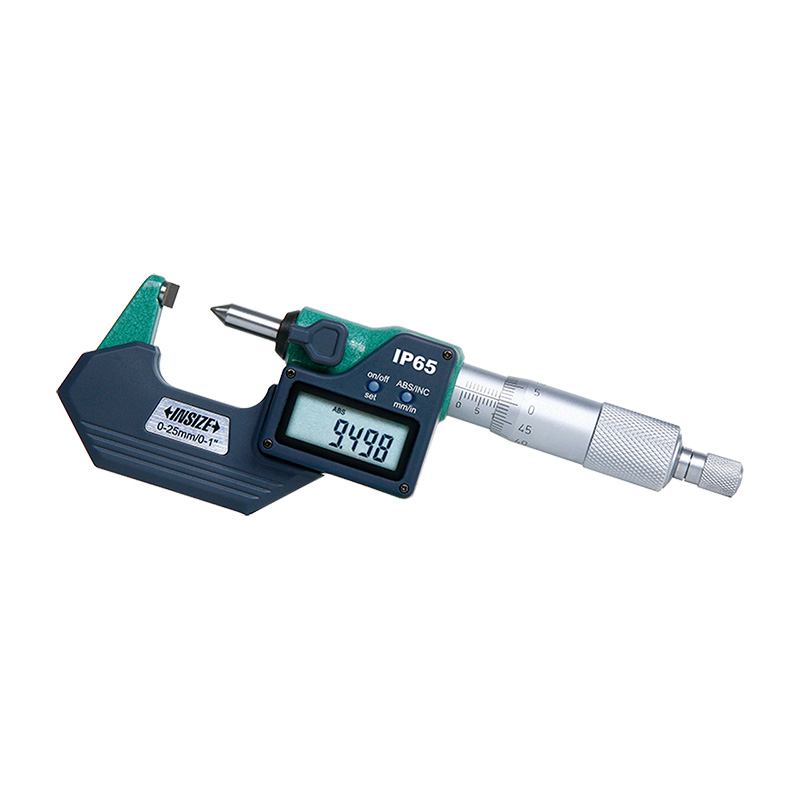

Digital Crimp Height Micrometers
Code: 3566
Measure the height of crimp contact
IP65 dust/waterproof
Button function: on/off, set, mm/inch, data transmit
Data output
Automatic power off
Ratchet stop
Supplied with setting standards (except 0-25mm/0-1")
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 3566-25BA | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" |
| 3566-25CA | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" |
| 3566-50CA | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" |
| 3566-75CA | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" |
| 3566-100CA | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" |
| 3566-25DA | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" |
