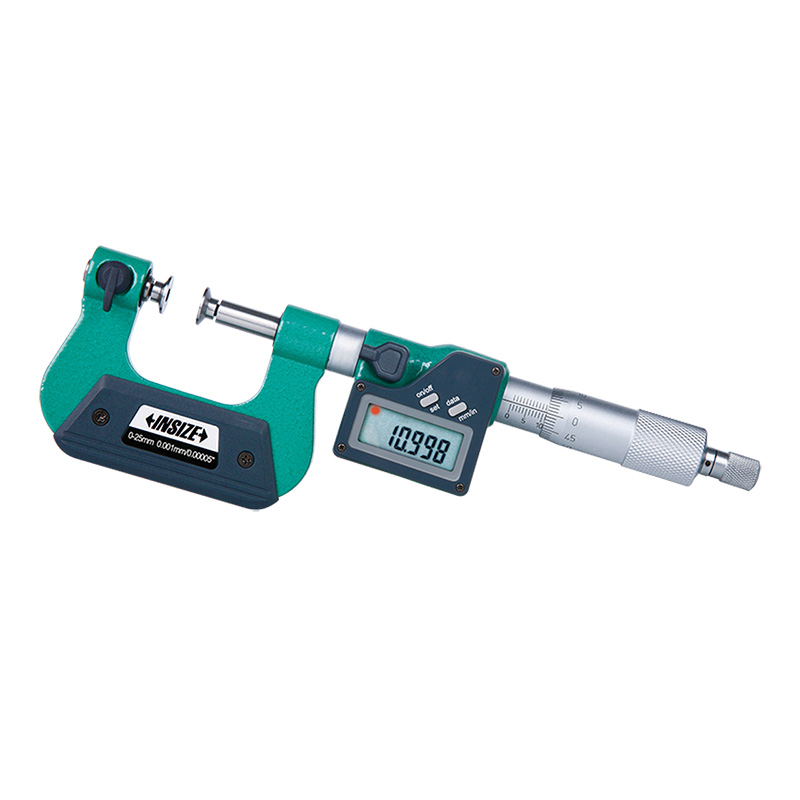

Digital Universal Micrometers
Code: 3580
Non-rotating spindle
Button function: on/off, set, mm/inch, data transmit
Data output
Automatic power off
Ratchet stop
Supplied with 7 pairs of anvil/spindle tip
Setting standards are included (except 0-25mm/0-1")
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 3580-25A | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" |
| 3580-50A | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" |
| 3580-75A | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" |
| 3580-100A | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" |
| 3580-125A | 100-125mm/4-5" | ±6μm | 0.001mm/0.00005" |
| 3580-150A | 125-150mm/5-6" | ±6μm | 0.001mm/0.00005" |
| 3580-175A | 150-175mm/6-7" | ±7μm | 0.001mm/0.00005" |
| 3580-200A | 175-200mm/7-8" | ±7μm | 0.001mm/0.00005" |
