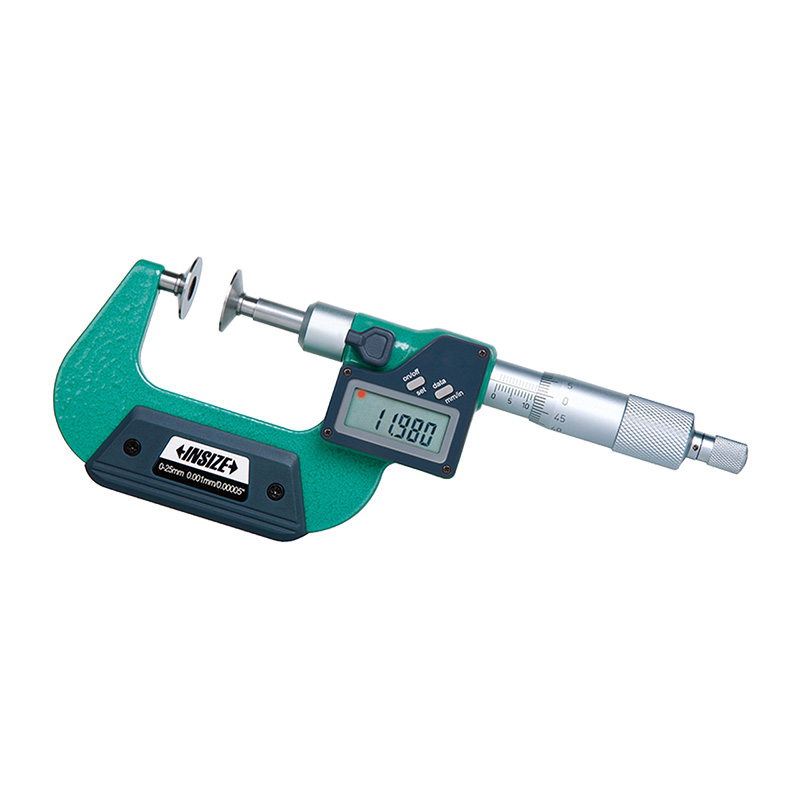

Digital Non-Rotating Spindle Disk Micrometers
Code: 3594
Measure root tangent length of gear
Non-rotating spindle
Button function: on/off, set, mm/inch, data transmit
Data output
Automatic power off
Ratchet stop
Supplied with setting standards
Specification
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 3594-25A | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" |
| 3594-50A | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" |
| 3594-75A | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" |
| 3594-100A | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" |
