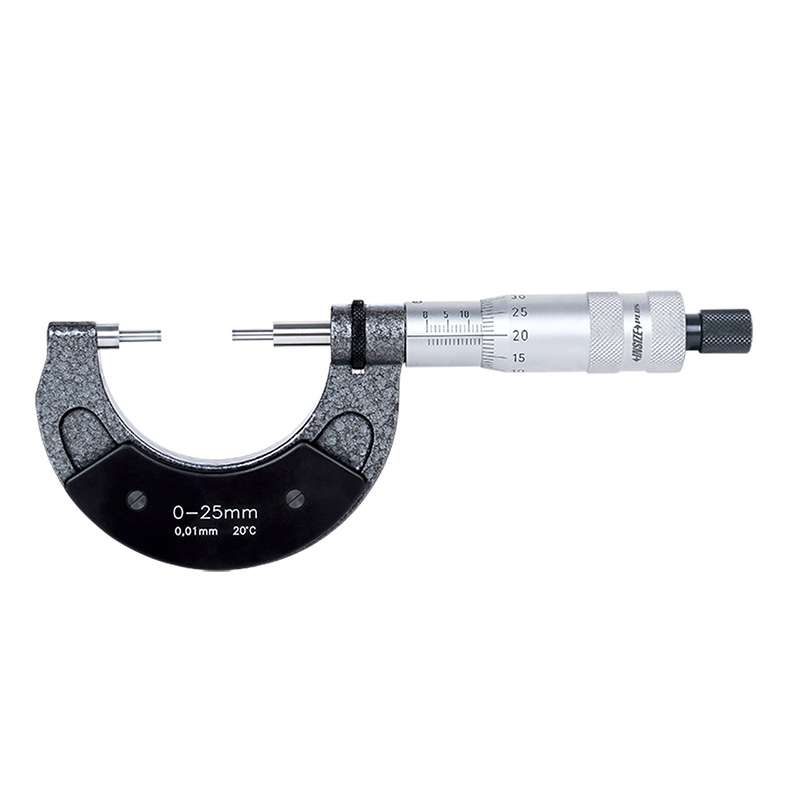

Spline Micrometers
Code: 3658
Meet DIN863-3
Measure splined shafts,
slots and keyways
Ratchet stop
Carbide measuring faces
Specification
| Code |
Range |
Accuracy |
Graduation |
| 3658-25 |
0-25mm |
4μm |
0.01mm |
| 3658-50 |
25-50mm |
4μm |
0.01mm |
| 3658-75 |
50-75mm |
5μm |
0.01mm |
| 3658-100 |
75-100mm |
5μm |
0.01mm |
| 3658-125 |
100-125mm |
6μm |
0.01mm |
| 3658-150 |
125-150mm |
6μm |
0.01mm |
| 3658-175 |
150-175mm |
7μm |
0.01mm |
| 3658-200 |
175-200mm |
7μm |
0.01mm |
| 3658-225 |
200-225mm |
8μm |
0.01mm |
| 3658-250 |
225-250mm |
8μm |
0.01mm |
