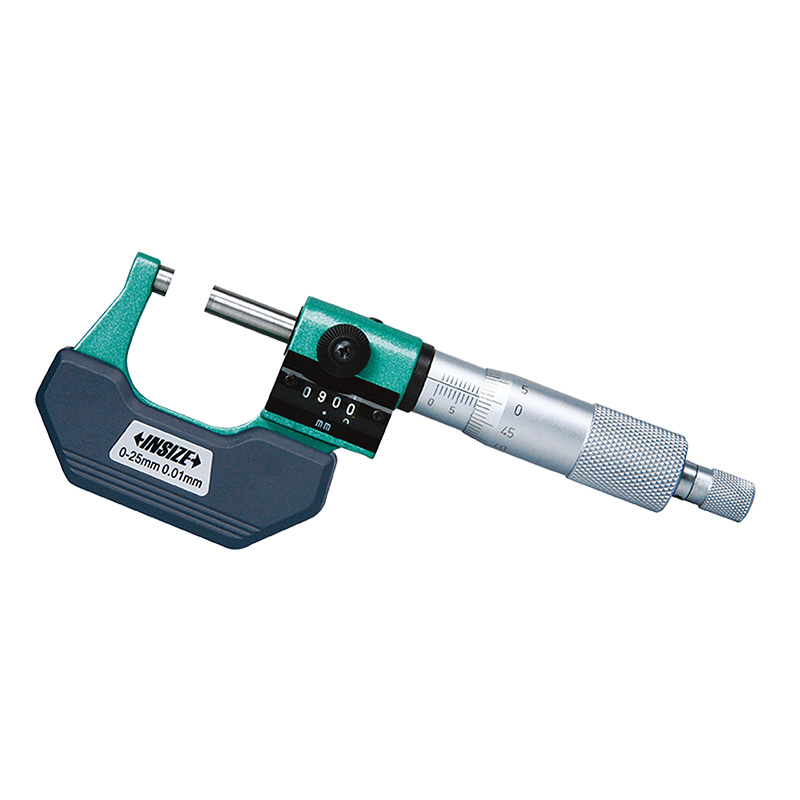

Outside Micrometers With Counter
Code: 3400
Counter resolution: 0.01mm
Carbide measuring faces
Meet DIN863-1
Ratchet stop
Supplied with setting standards (except 0-25mm)
Specification
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 3400-25 | 0-25mm | 4μm | 0.01mm |
| 3400-50 | 25-50mm | 4μm | 0.01mm |
| 3400-75 | 50-75mm | 5μm | 0.01mm |
| 3400-100 | 75-100mm | 5μm | 0.01mm |
| 3400-125 | 100-125mm | 6μm | 0.01mm |
| 3400-150 | 125-150mm | 6μm | 0.01mm |
| 3400-175 | 150-175mm | 7μm | 0.01mm |
| 3400-200 | 175-200mm | 7μm | 0.01mm |
| 3400-225 | 200-225mm | 8μm | 0.01mm |
| 3400-250 | 225-250mm | 8μm | 0.01mm |
| 3400-275 | 250-275mm | 9μm | 0.01mm |
| 3400-300 | 275-300mm | 9μm | 0.01mm |
