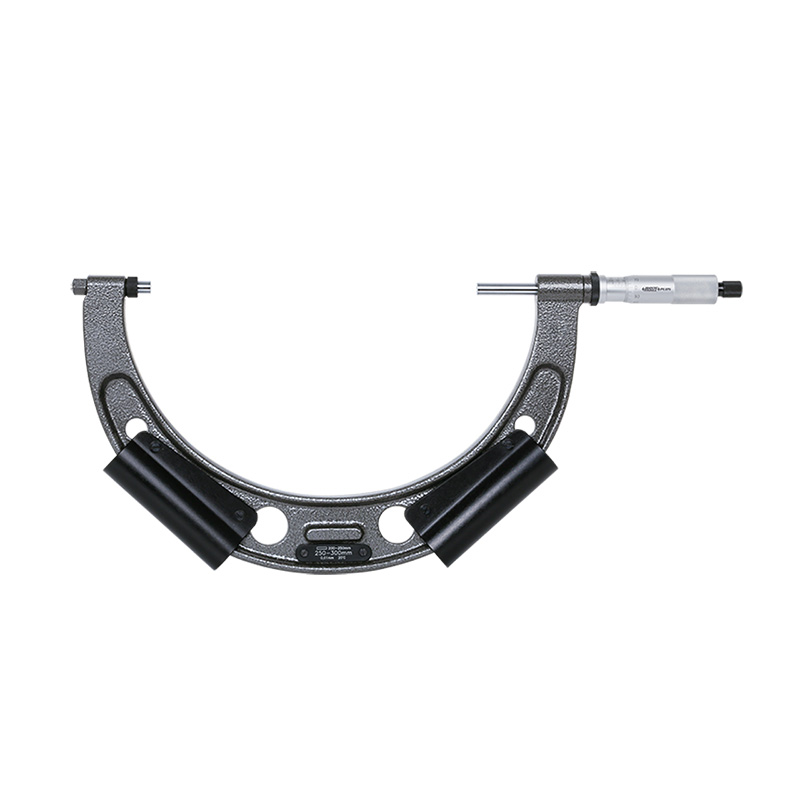

Outside Micrometers With Interchangeable Anvils
Code: 3675
Meet DIN863-3
Carbide measuring faces
Light weight
Optional accessory: setting standards (code 7386)
Specification
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 3675-200 | 100-200mm | 6μm | 0.01mm |
| 3675-300 | 200-300mm | 6μm | 0.01mm |
| 3675-400 | 300-400mm | 7μm | 0.01mm |
| 3675-500 | 400-500mm | 8μm | 0.01mm |
| 3675-600 | 500-600mm | 9μm | 0.01mm |
| 3675-700 | 600-700mm | 9μm | 0.01mm |
| 3675-800 | 700-800mm | 9μm | 0.01mm |
| 3675-900 | 800-900mm | 10μm | 0.01mm |
| 3675-1000 | 900-1000mm | 10μm | 0.01mm |
| 3675-1100 | 1000-1100mm | 11μm | 0.01mm |
| 3675-1200 | 1100-1200mm | 11μm | 0.01mm |
| 3675-1300 | 1200-1300mm | 12μm | 0.01mm |
| 3675-1400 | 1300-1400mm | 12μm | 0.01mm |
| 3675-1500 | 1400-1500mm | 13μm | 0.01mm |
| 3675-1600 | 1500-1600mm | 18μm | 0.01mm |
| 3675-1700 | 1600-1700mm | 19μm | 0.01mm |
| 3675-1800 | 1700-1800mm | 20μm | 0.01mm |
| 3675-1900 | 1800-1900mm | 21μm | 0.01mm |
| 3675-2000 | 1900-2000mm | 22μm | 0.01mm |
