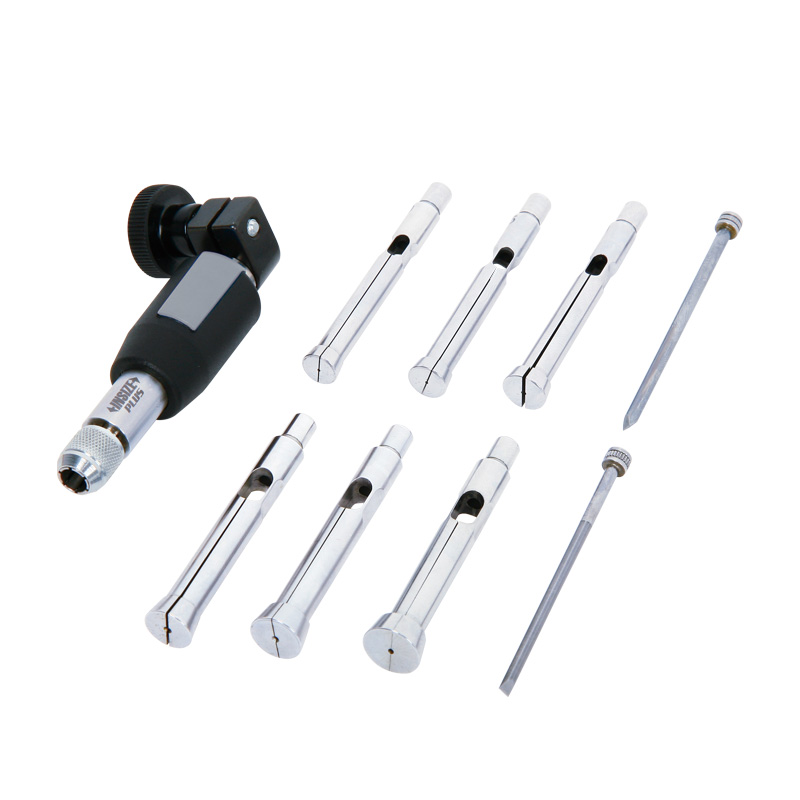

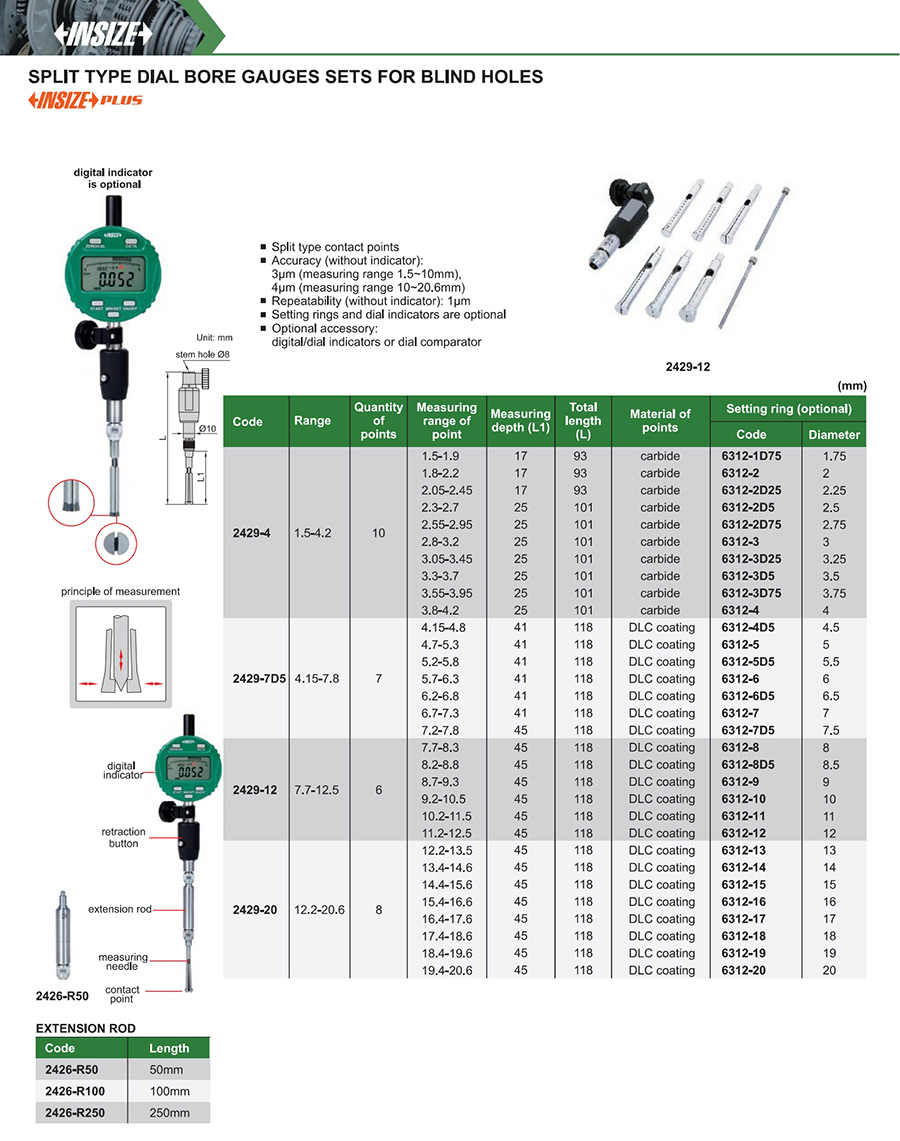

Split Type Dial Bore Gauges Sets For Blind Holes
Code: 2429
Split type contact points
Setting rings and dial indicators are optional
Optional accessory: digital/dial indicators or dial comparator
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| 2429-4 | 1.5-4.2mm | 3µm | 1µm |
| 2429-7D5 | 4.15-7.8mm | 3µm | 1µm |
| 2429-12 | 7.7-12.5mm | 3µm (measuring range 1.5~10mm), 4µm (measuring range 10~20.6mm) | 1µm |
| 2429-20 | 12.2-20.6mm | 4µm | 1µm |
