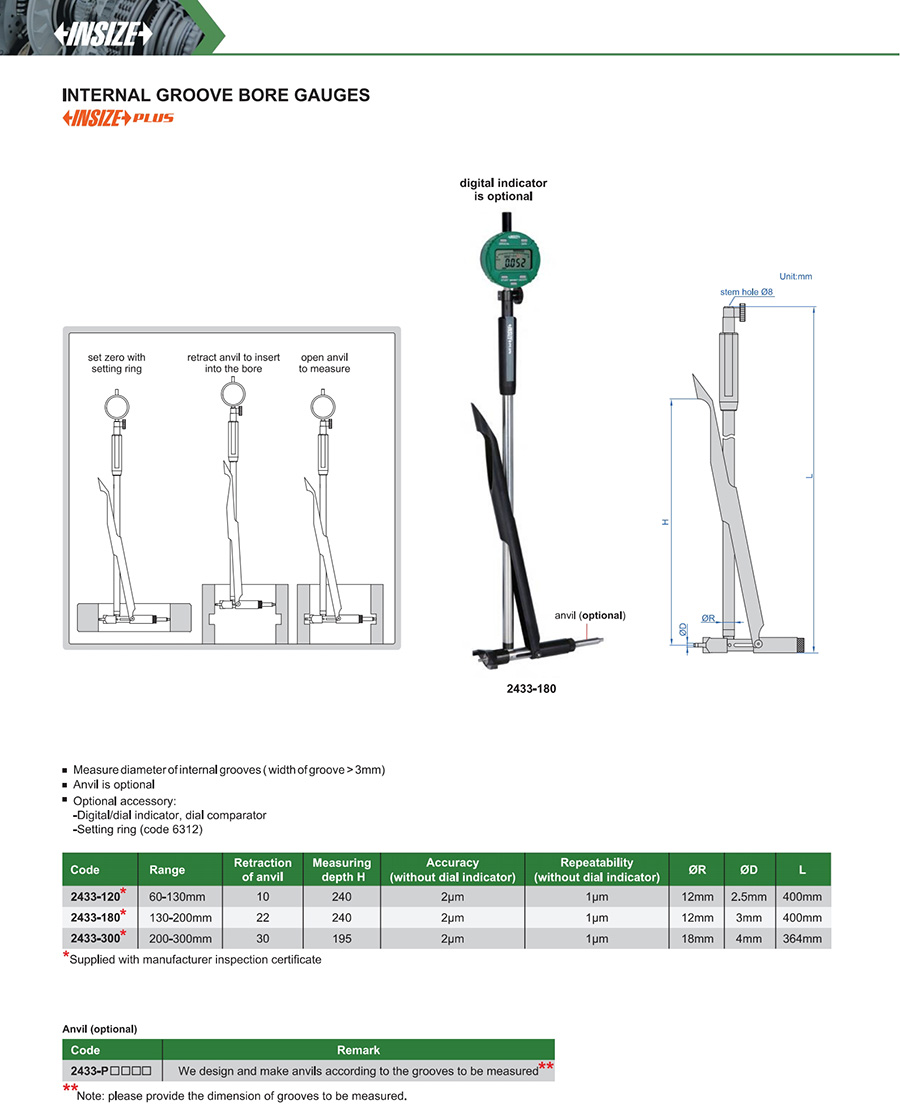

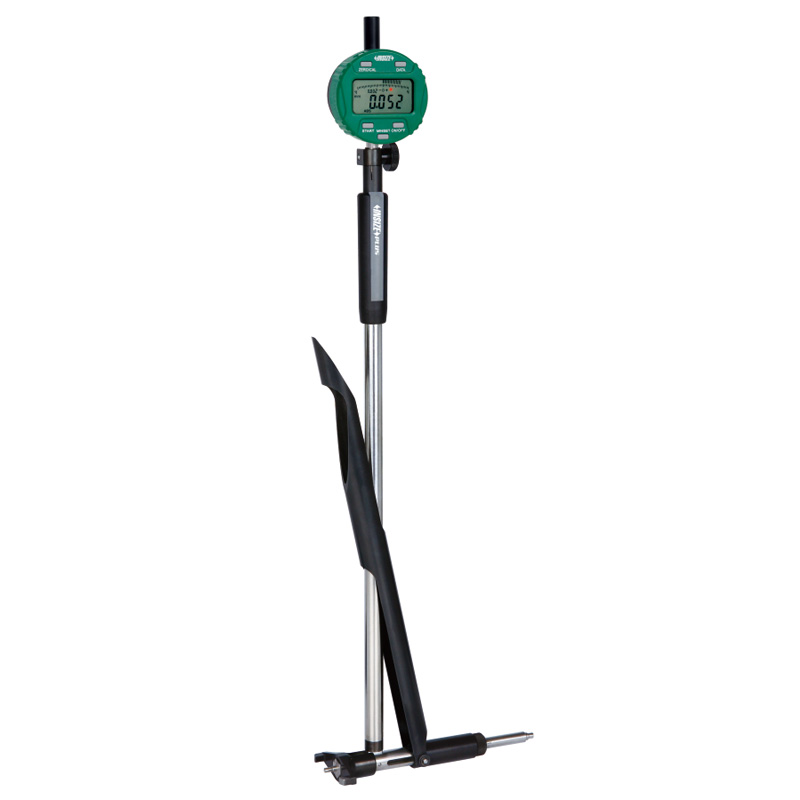

Internal Groove Bore Gauges
Code: 2433
Measure diameter of internal grooves ( width of groove > 3mm)
Anvil is optional
Specification
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| 2433-120 | 60-130mm | 2μm | 1μm |
| 2433-180 | 130-200mm | 2μm | 1μm |
| 2433-300 | 200-300mm | 2μm | 1μm |
