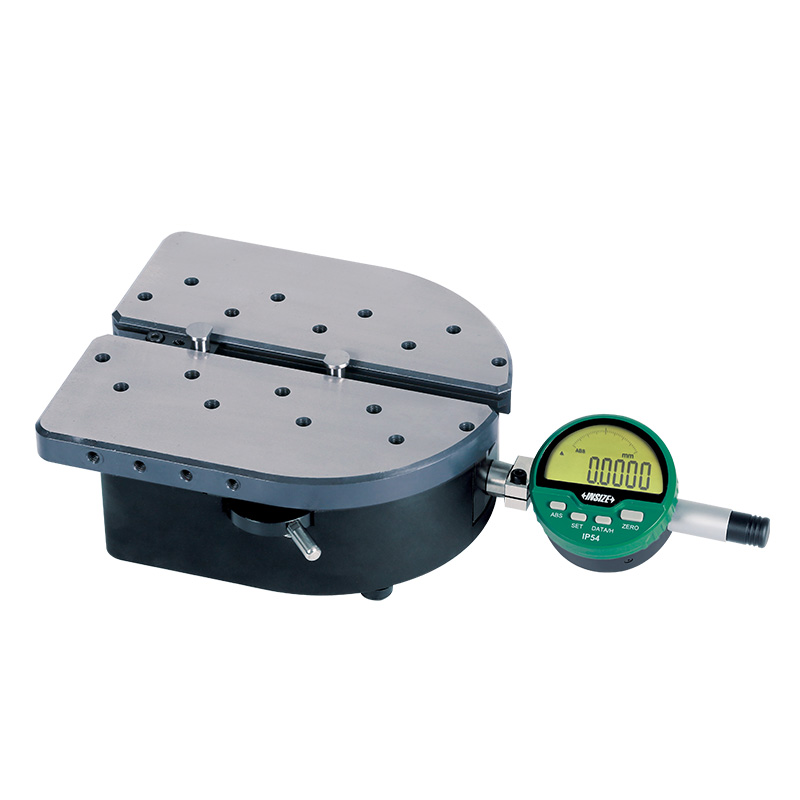

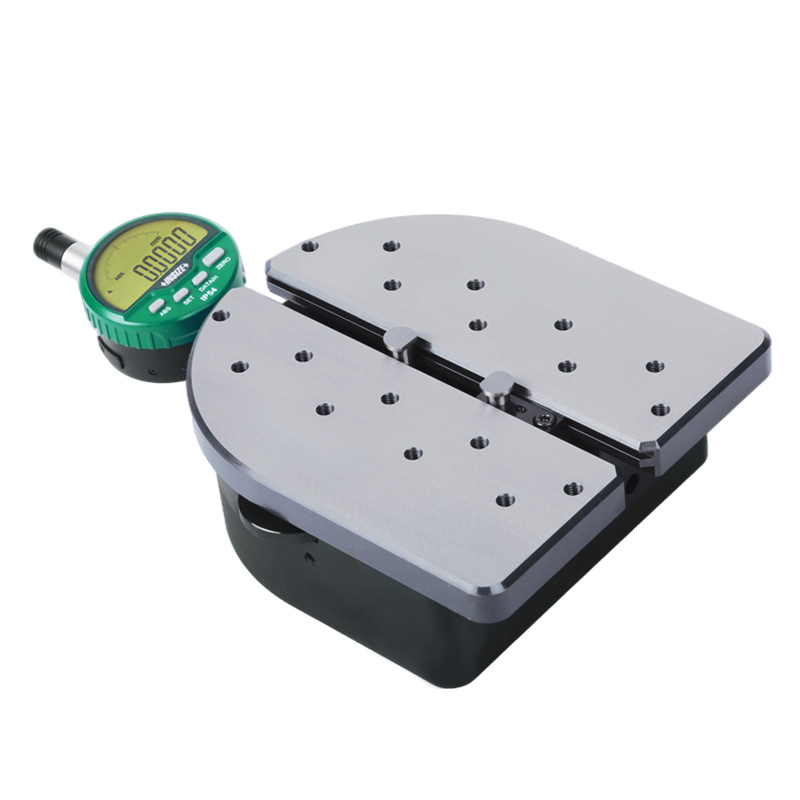

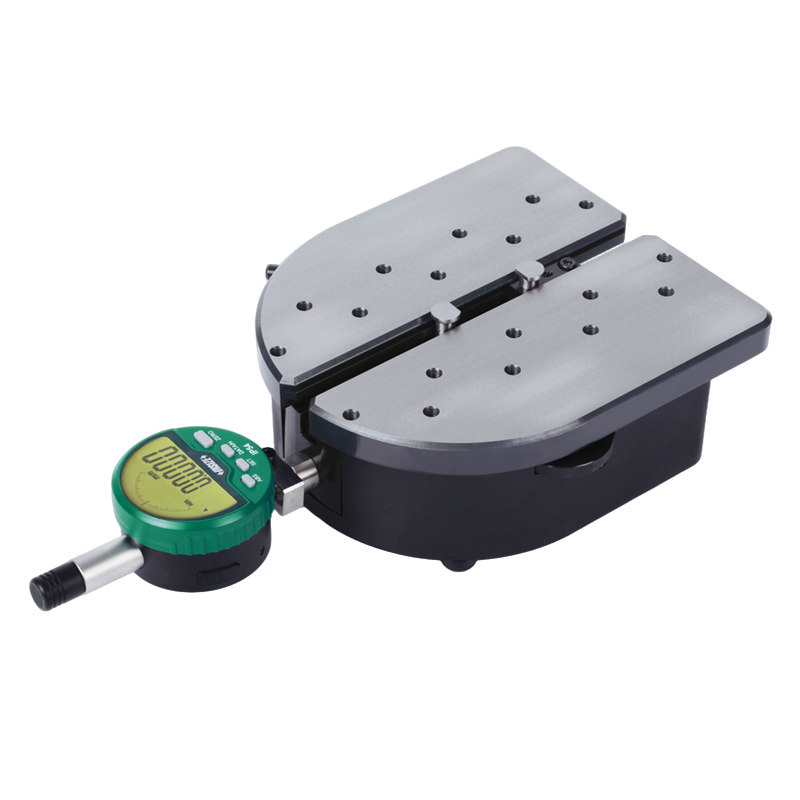

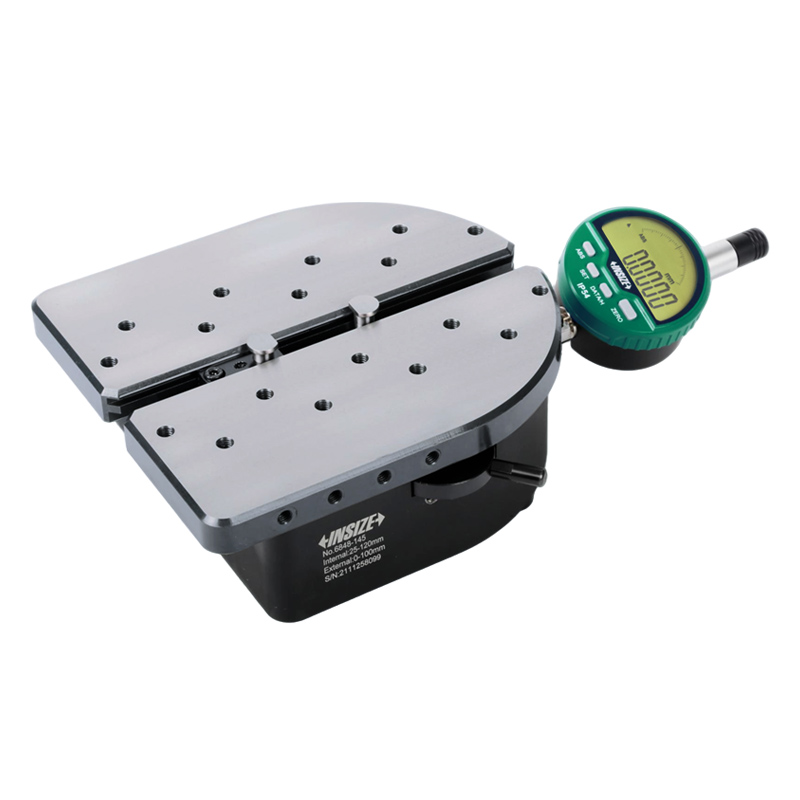

Universal Comparison Measuring Bench
Code: 6848
Switchable measurement direction for measuring internal and external diameter
Adjustable measuring force: 2-5N
Movable probe travel: ±10mm
Optional accessory: digital indicators (code 2138-25F, 2508-25FWL, 2136-25, 2133-25)
Specification
| Code | Accuracy | Repeatability | Range of external diameter | Range of internal diameter |
|---|---|---|---|---|
| 6848-145 | 5µm (without digital indicator) | 2µm (without digital indicator) | 0-100mm | 25-120mm |
