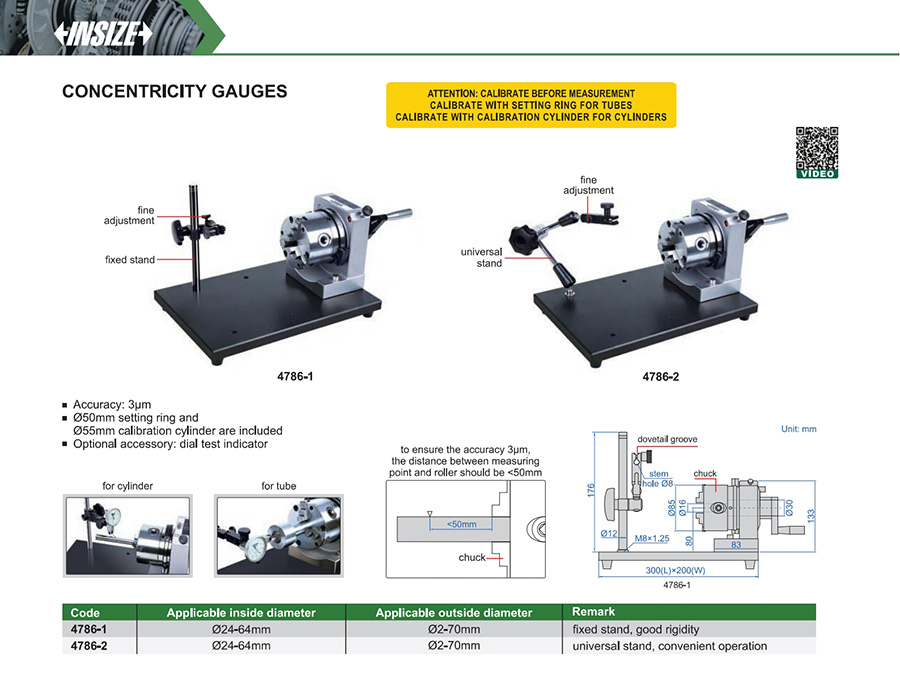

Concentricity Gauges
Code: 4786
Ø50mm setting ring and Ø55mm calibration cylinder are included

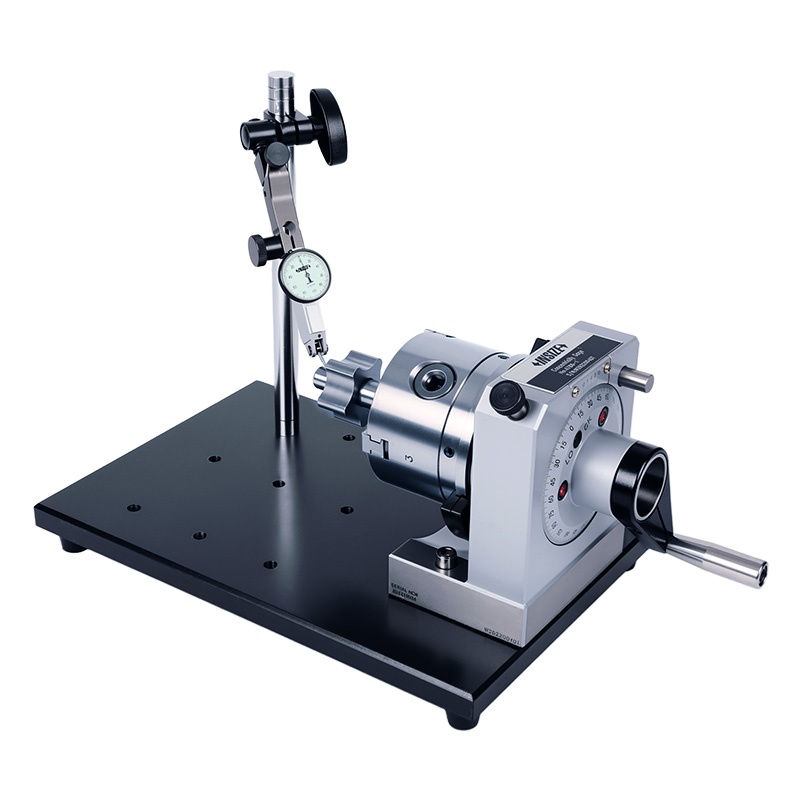

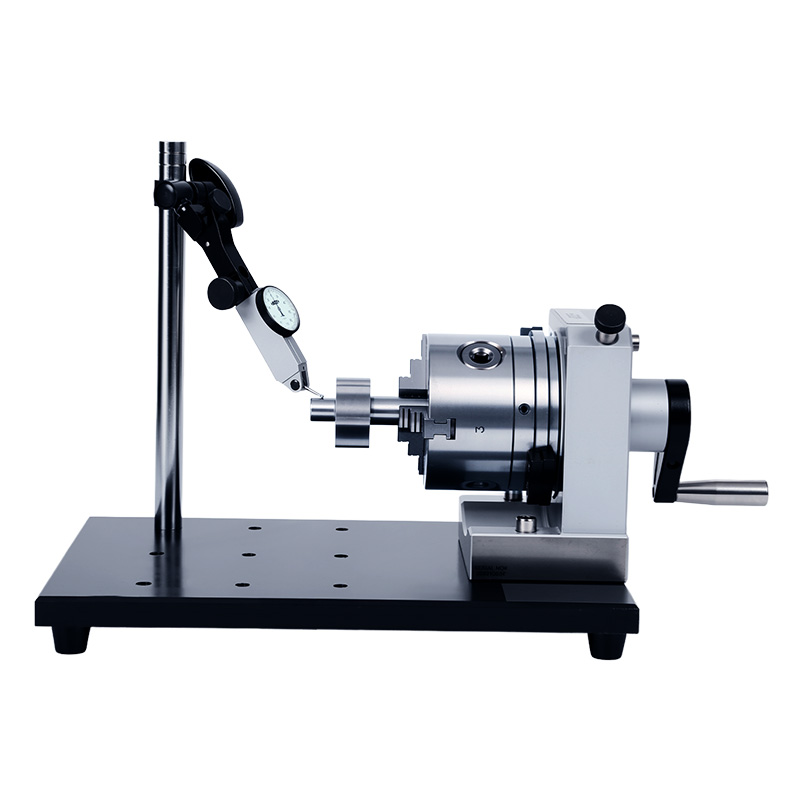

Optional accessory: dial test indicator
Specification
| Code | Range | Accuracy | Remark |
|---|---|---|---|

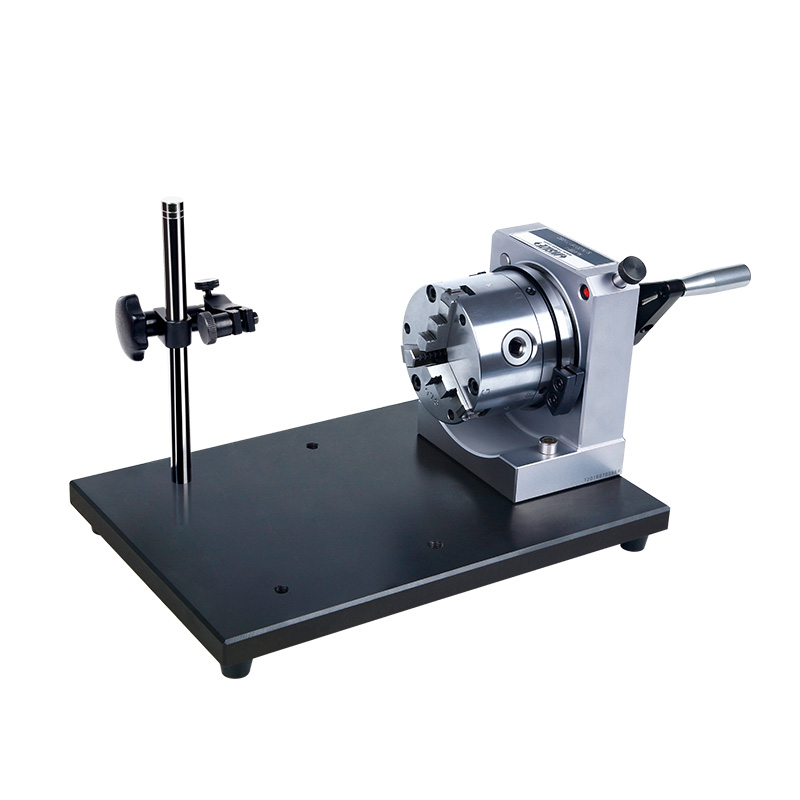

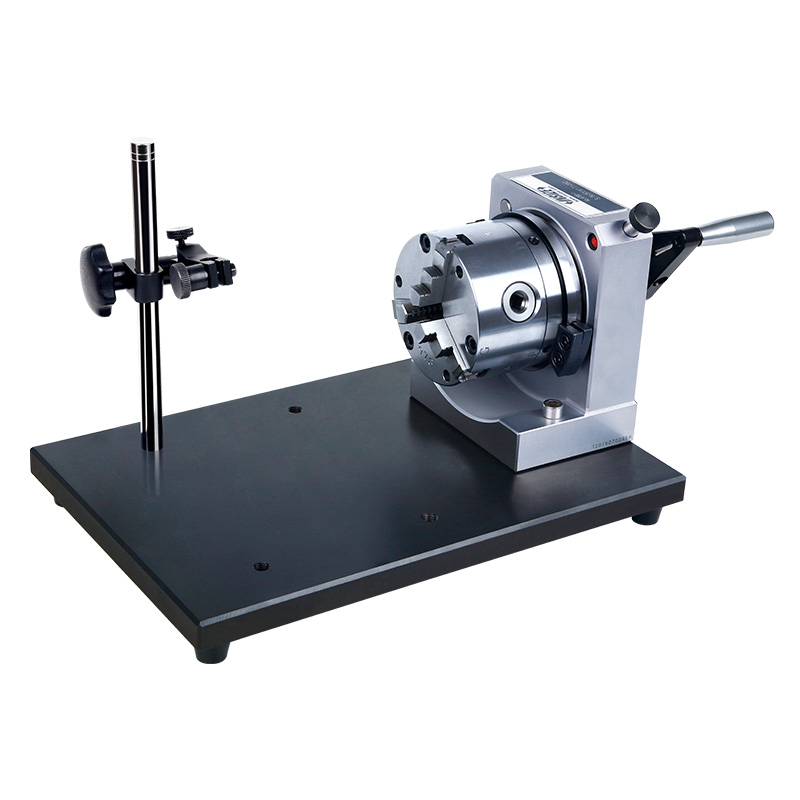

| 4786-1 | Ø2-70mm | 3μm | fixed stand, good rigidity |

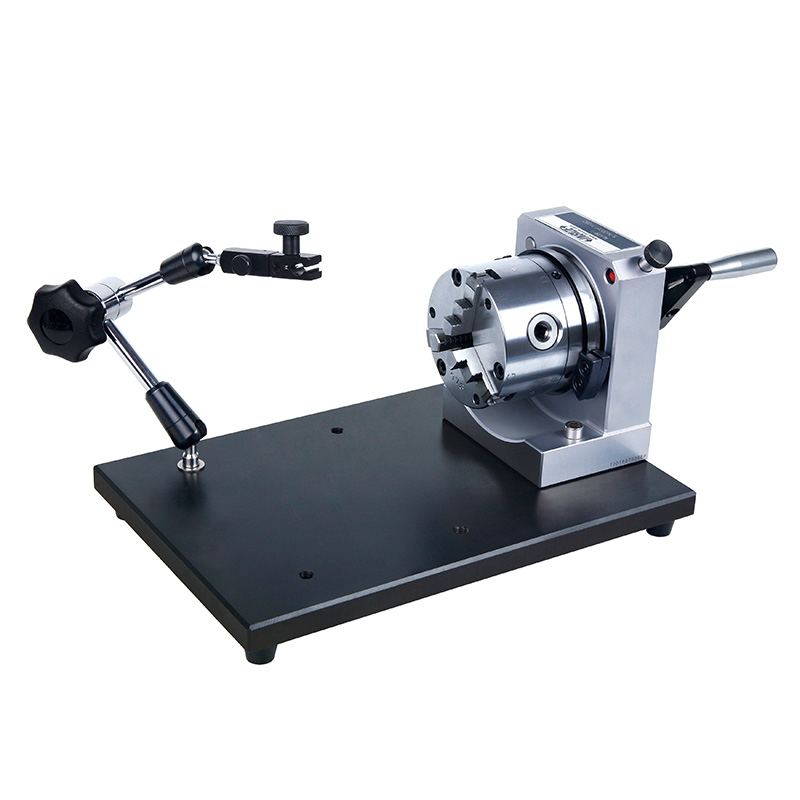

| 4786-2 | Ø2-70mm | 3μm | universal stand, convenient operation |
